02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts

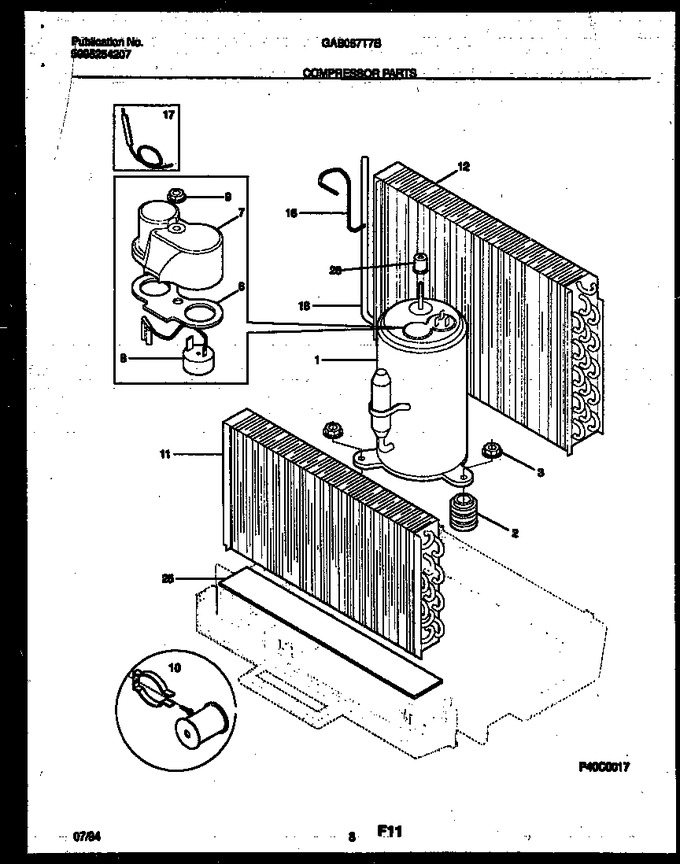

05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303303231 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet-compressor |
|
- | |||||
| 3 | 5303286164 | Nut-compressor |
|
- | |||||
| 4 | 309101401 | Screw, 8-18 X 3/8, (3) |
|
- | |||||
| 6 | 3200282 | Gasket-cover |
|
- | |||||
| 7 | 3200281 | Cover-terminal |
|
- | |||||
| 8 | 5303303155 | Overload |
|
- | |||||
| 9 | 5303211017 | Nut-cover |
|
- | |||||
| 10 | 5303201723 | Start Kit |
|
- | |||||
| 11 | 5303295748 | Evaporator |
|
- | |||||
| 12 | 309602701 | Condenser |
|
- | |||||
| 16 | 5308017120 | Capillary Tube-cut To 30`` |
|
- | |||||
| 17 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 18 | 5303290357 | Strainer |
|
- | |||||
| 25 | 5303286385 | Insulation, Evap. Bottom |
|
- | |||||
| 26 | 5303301560 | Grommet-compr. Top |
|
- |
