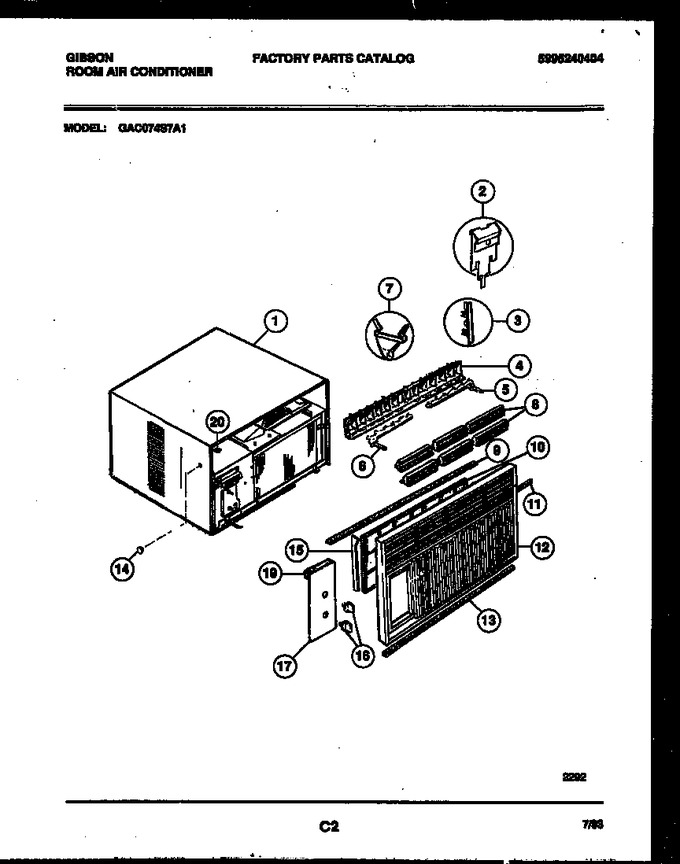

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270060 | Wrapper |
|
- | |||||
| 2 | 5303295272 | Clip |
|
- | |||||
| 3 | 5303017319 | Retainer-louver |
|
- | |||||
| 4 | 5303002457 | Louver & Link |
|
- | |||||
| 5 | 5303293758 | Link-rh |
|
- | |||||
| 6 | 5303293759 | Link-lh |
|
- | |||||
| 7 | 5303001844 | Clip-link |
|
- | |||||
| 8 | 3017302 | Louvers |
|
- | |||||
| 9 | 3017398 | Seal Top & Sides |
|
- | |||||
| 10 | 3017518 | Filter |
|
- | |||||
| 11 | 3017137 | Seal-mullion |
|
- | |||||
| 12 | 5303283756 | Front-complete |
|
- | |||||
| 13 | 5303281623 | Seal - Bottom |
|
- | |||||
| 14 | 5303271346 | Screw-front |
|
- | |||||
| 15 | 3017941 | Rail Filter Lh |
|
- | |||||
| 16 | 5303017300 | Knob-control |
|
- | |||||
| 17 | 5303283755 | Dial-plate |
|
- | |||||
| 19 | 5303281624 | Seal |
|
- | |||||
| 20 | 08010928 | Nut-front |
|
- | |||||
| 15A | 3017517 | Rail Filter Rh |
|
- |
