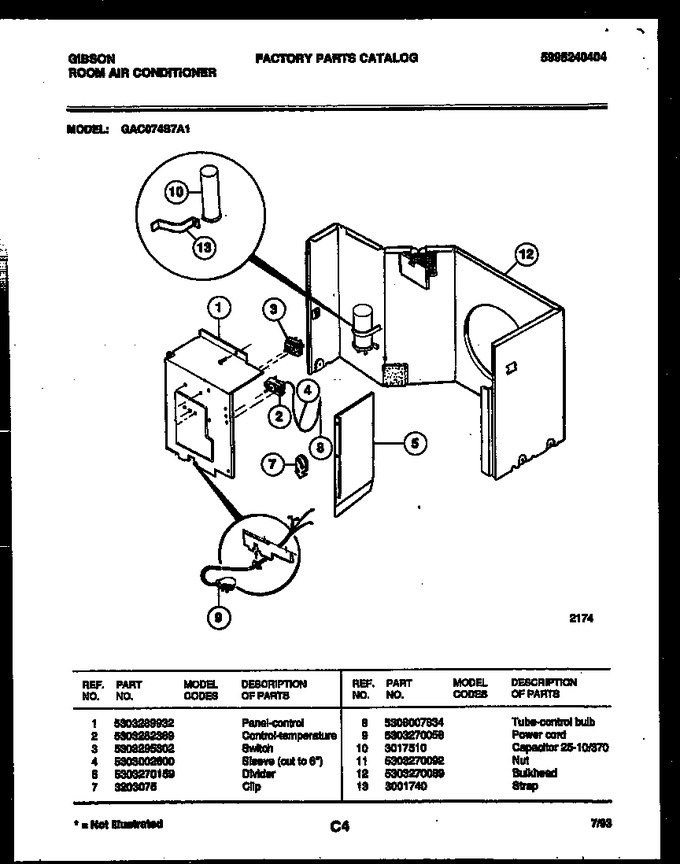

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303289932 | Panel-control |
|
- | |||||
| 2 | 5303282369 | Control-temperature |
|
$ 91.90 | |||||
| 3 | 5303295302 | Switch |
|
- | |||||
| 4 | 5303002600 | Sleeve-cut To 6`` |
|
- | |||||
| 5 | 5303270159 | Divider |
|
- | |||||
| 7 | 3203075 | Clip |
|
- | |||||
| 8 | 5308007834 | Tube Control Bulb |
|
- | |||||
| 9 | 5303270058 | Power Cord |
|
- | |||||
| 10 | 3017510 | Capacitor 25-10/370 |
|
- | |||||
| 11 | 5303270092 | Nut |
|
- | |||||
| 12 | 5303270089 | Bulkhead |
|
- | |||||
| 13 | 3001740 | Strap |
|
- |
