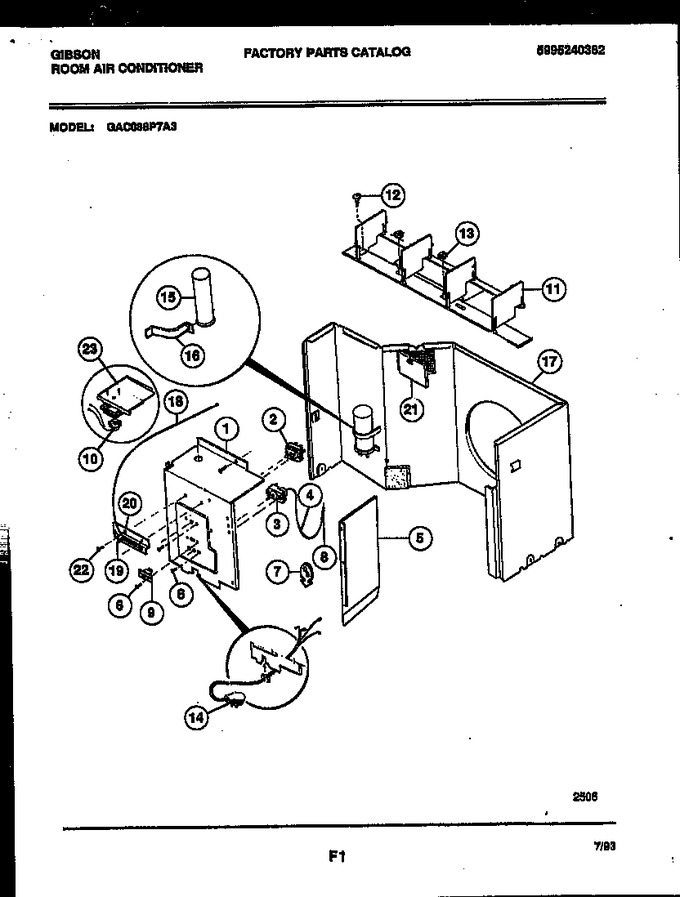

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303289932		Panel-control		Appelez-nous	-
2	5303282369		Control-temperature				$ 91.90
3	53033001028		Switch-selector (models With Seriel Numbers Beginning Wi		Appelez-nous	-
3	3017514		Switch-selector (all Other Seriel Numbers)		Appelez-nous	-
4	5303002600		Sleeve-cut To 6``		Appelez-nous	-
5	5303270159		Divider		Appelez-nous	-
6	5303007754		Screw		Appelez-nous	-
7	3203075		Clip		Appelez-nous	-
8	5308007834		Tube Control Bulb		Appelez-nous	-
9	3202118		Switch - Slide		Appelez-nous	-
10	5303281923		Motor-drive		Appelez-nous	-
11	5303211072		Louver		Appelez-nous	-
12	5303015427		Screw		Appelez-nous	-
13	3202733		Nut		Appelez-nous	-
14	5303270058		Power Cord		Appelez-nous	-
15	3202119		Capacitor-35 + 10/370		Appelez-nous	-
16	3001740		Strap		Appelez-nous	-
17	5303270089		Bulkhead		Appelez-nous	-
18	5303276672		Cable		Appelez-nous	-
19	5303270351		Arm		Appelez-nous	-
20	5303202999		Retainer		Appelez-nous	-
21	5303295752		Door-vent		Appelez-nous	-
22	3015312		Screw		Appelez-nous	-
23	5303015294		Screw-motor		Appelez-nous	-
