02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
New Model Search:

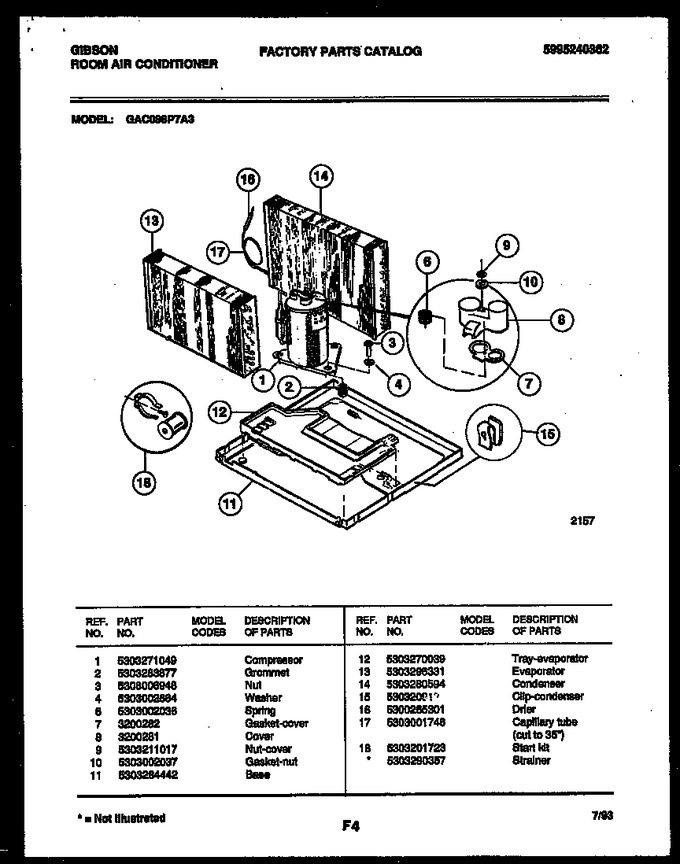

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303271049 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet |
|
- | |||||
| 3 | 5308006948 | Nut |
|
- | |||||
| 4 | 5303002664 | Washer |
|
- | |||||
| 6 | 5303002036 | Spring |
|
- | |||||
| 7 | 3200282 | Gasket-cover |
|
- | |||||
| 8 | 3200281 | Cover |
|
- | |||||
| 9 | 5303211017 | Nut-cover |
|
- | |||||
| 10 | 5303002037 | Gasket-nut |
|
- | |||||
| 11 | 5303284442 | Base |
|
- | |||||
| 12 | 5303270039 | Tray-evaporator |
|
- | |||||
| 13 | 5303296331 | Evaporator |
|
- | |||||
| 14 | 5303280594 | Condenser |
|
- | |||||
| 15 | 5303209136 | Clip-condenser |
|
- | |||||
| 16 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 17 | 5303001746 | Capillary Tube-cut To 35`` |
|
- | |||||
| 18 | 5303201723 | Start Kit |
|
- | |||||
| *62463 | 5303290357 | Strainer |
|
- |
