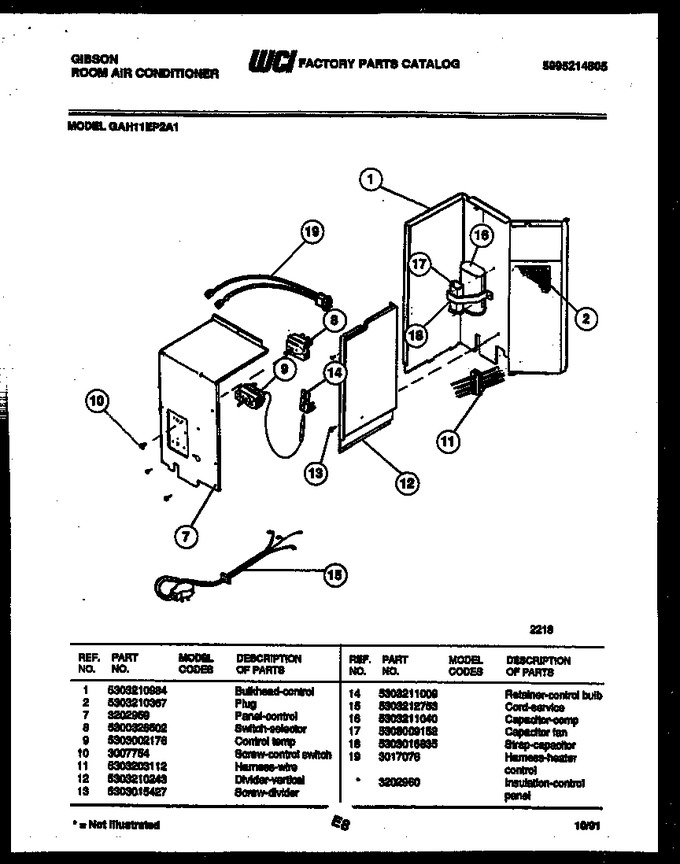

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210984 | Bulkhead - Control |
|
- | |||||
| 2 | 5303210367 | Plug |
|
- | |||||
| 7 | 3202959 | Panel-control |
|
- | |||||
| 8 | 5300326502 | Switch-selector |
|
- | |||||
| 9 | 5303002176 | Control Temp |
|
- | |||||
| 10 | 3007754 | Screw-control & Switch |
|
- | |||||
| 11 | 5303203112 | Harness-wire |
|
- | |||||
| 12 | 5303210243 | Divider-vertical |
|
- | |||||
| 13 | 5303015427 | Screw - Divider |
|
- | |||||
| 14 | 5303211009 | Retainer-control Bulb |
|
- | |||||
| 15 | 5303212753 | Cord-service |
|
- | |||||
| 16 | 5303211040 | Capacitor-comp. |
|
- | |||||
| 17 | 5308009152 | Capacitor-fan |
|
- | |||||
| 18 | 5303016835 | Strap-capacitor |
|
- | |||||
| 19 | 3017076 | Harness-heater Control |
|
- | |||||
| *44709 | 3202960 | Insulation - Control Panel |
|
- |
