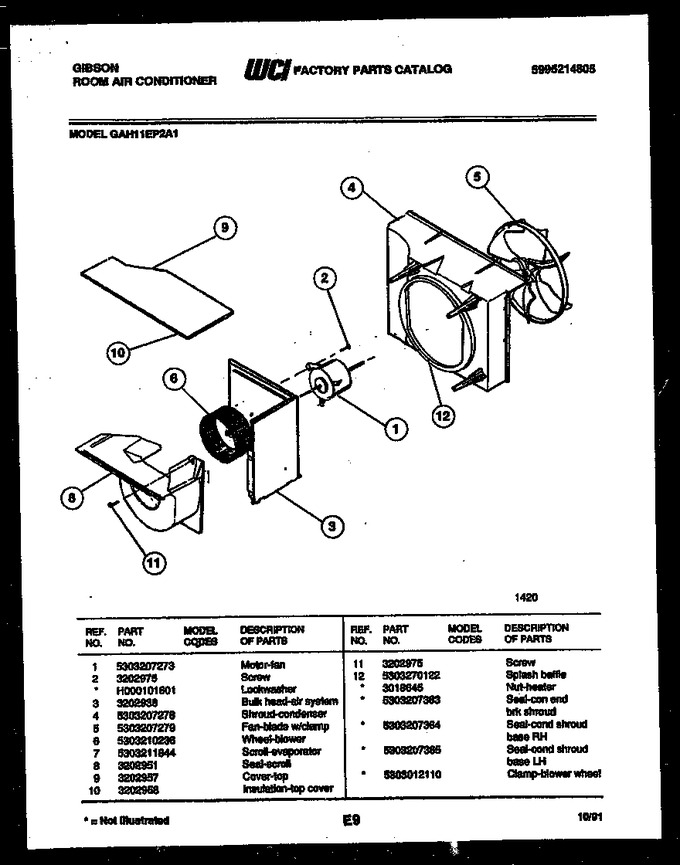

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207273 | Motor-fan |
|
- | |||||
| 2 | 3202975 | Screw |
|
- | |||||
| 3 | 3202938 | Bulkhead-air System |
|
- | |||||
| 4 | 5303207278 | Shroud - Condenser |
|
- | |||||
| 5 | 5303207279 | Fan-blade-w/ Clamp |
|
- | |||||
| 6 | 5303210236 | Wheel-blower |
|
- | |||||
| 7 | 5303211844 | Scroll-evaporator |
|
- | |||||
| 8 | 3202951 | Seal-scroll |
|
- | |||||
| 9 | 3202957 | Cover-top |
|
- | |||||
| 10 | 3202958 | Insulation-top Cover |
|
- | |||||
| 11 | 3202975 | Screw |
|
- | |||||
| 12 | 5303270122 | Splash Baffle |
|
- | |||||
| *44713 | 3018645 | Nut-heater |
|
- | |||||
| *44713 | 5303207363 | Seal-con End Brk Shroud |
|
- | |||||
| *44713 | 5303207364 | Seal-cond Shroud Base (rh) |
|
- | |||||
| *44714 | 5303012110 | Clamp - Blower Wheel |
|
$ 8.14 | |||||
| *44714 | 5303207365 | Seal-cond Shroud Base (lh) |
|
- | |||||
| 2A | H000101601 | Lockwasher (non-illustrated) |
|
- |
