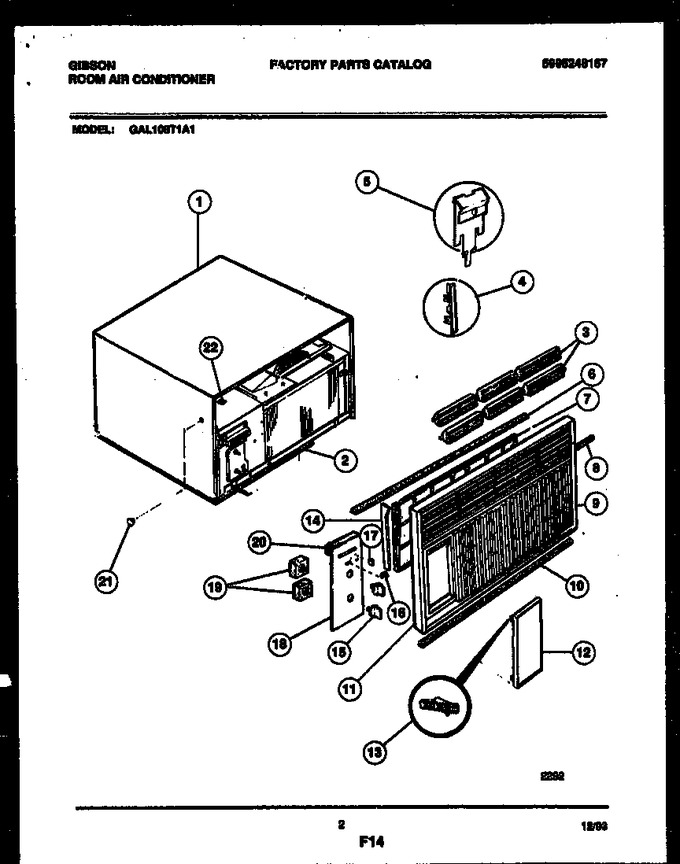

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Unit Parts
06 - Compressor Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303301242 | Wrapper |
|
- | |||||
| 2 | 5314949603 | Seal Chassis Btm |
|
- | |||||
| 3 | 3018412 | Louver |
|
- | |||||
| 4 | 5303017319 | Retainer-louver |
|
- | |||||
| 5 | 3200446 | Clip |
|
- | |||||
| 6 | 3018407 | Seal-top |
|
- | |||||
| 7 | 3018657 | Filter |
|
- | |||||
| 8 | 3018550 | Seal-mullion |
|
- | |||||
| 9 | 530327248 | Front Complete |
|
- | |||||
| 10 | 5303278925 | Seal-bottom |
|
- | |||||
| 11 | 5303207203 | Seal-sides |
|
- | |||||
| 12 | 5303272483 | Door |
|
- | |||||
| 13 | 5303017980 | Hinge |
|
- | |||||
| 14 | 3018547 | Rail-filter, Lh |
|
- | |||||
| 15 | 5303017300 | Knob-control |
|
- | |||||
| 16 | 3017341 | Knob-switch |
|
- | |||||
| 17 | 5303017340 | Knob - Slide |
|
- | |||||
| 18 | 5303282696 | Dial Plate |
|
- | |||||
| 19 | 5303001775 | Spacer |
|
- | |||||
| 20 | 5303001984 | Seal |
|
- | |||||
| 21 | 5303271346 | Screw-front |
|
- | |||||
| 22 | 08010928 | Nut-front |
|
- | |||||
| 14A | 3018548 | Rail-filter, Rh |
|
- | |||||
| 1A | 5303301025 | Grille-rear (non-illustrated) |
|
- | |||||
| 1B | 5303302608 | Nameplate-grille (non-illustrated) |
|
- |
