02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Unit Parts
06 - Compressor Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

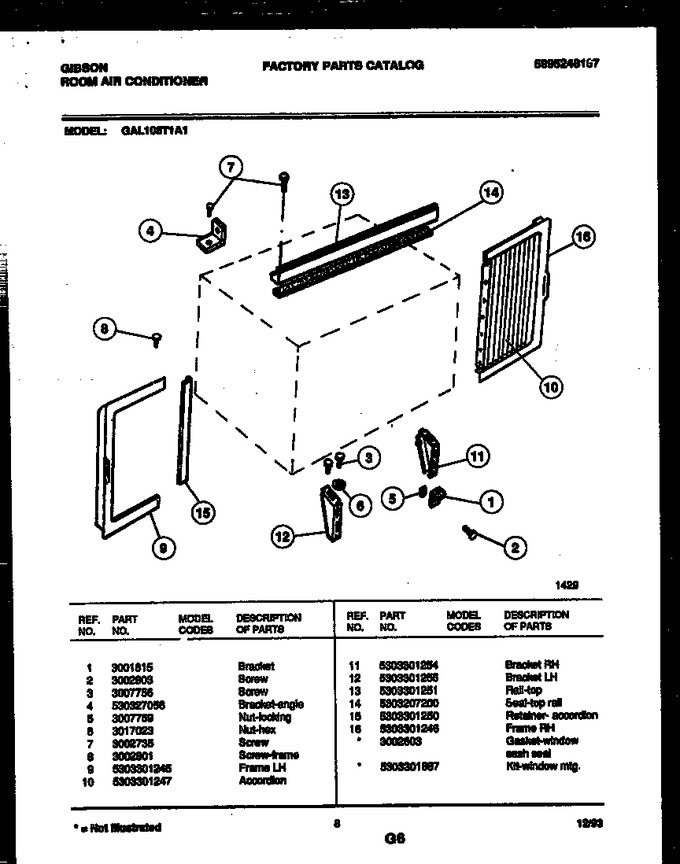

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3001815 | Bracket |
|
- | |||||
| 2 | 3002803 | Screw |
|
- | |||||
| 3 | 3007756 | Screw |
|
- | |||||
| 4 | 530327056 | Bracket-angle |
|
- | |||||
| 5 | 3007759 | Nut Locking |
|
- | |||||
| 6 | 3017023 | Nut, Hex |
|
- | |||||
| 7 | 3002735 | Screw |
|
- | |||||
| 8 | 3002801 | Screw-frame |
|
- | |||||
| 9 | 5303301245 | Frame, Lh |
|
- | |||||
| 10 | 5303301247 | Accordion |
|
- | |||||
| 11 | 5303301254 | Bracket-rh |
|
- | |||||
| 12 | 5303301255 | Bracket-lh |
|
- | |||||
| 13 | 5303301251 | Rail,top |
|
- | |||||
| 14 | 5303207200 | Seal-top Rail |
|
- | |||||
| 15 | 5303301250 | Retainer-accordion |
|
- | |||||
| 16 | 5303301246 | Frame, Rh |
|
- | |||||
| *59235 | 3002603 | Gasket-window (non-illustrated) |
|
- | |||||
| *59235 | 5303301887 | Kit-window Mtg. (non-illustrated) |
|
- |
