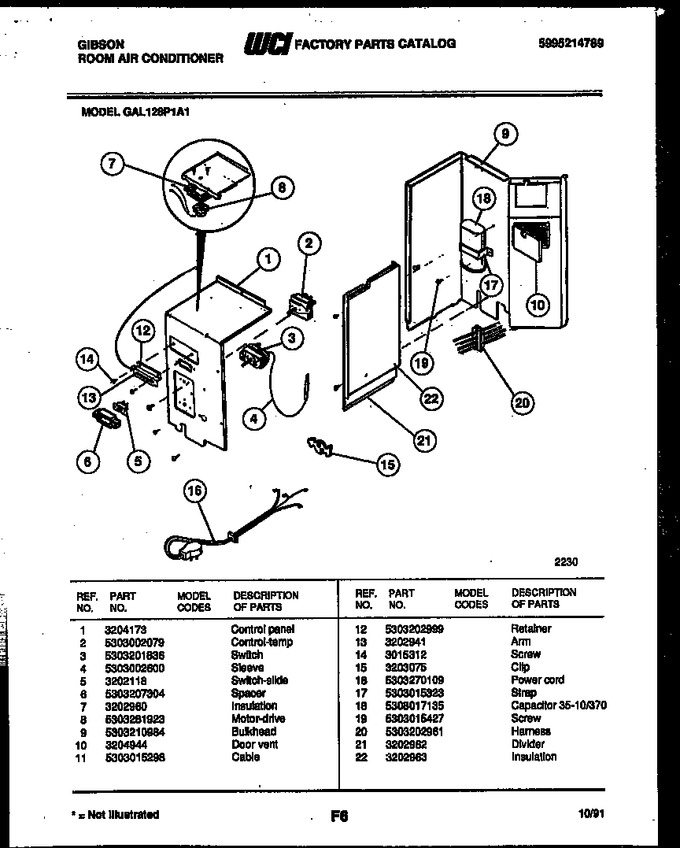

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204173 | Control Panel |
|
- | |||||
| 2 | 5303002079 | Control Temp |
|
- | |||||
| 3 | 5303201836 | Switch |
|
- | |||||
| 4 | 5303002600 | Sleeve |
|
- | |||||
| 5 | 3202118 | Switch - Slide |
|
- | |||||
| 6 | 5303207304 | Spacer |
|
- | |||||
| 7 | 3202960 | Insulation |
|
- | |||||
| 8 | 5303281923 | Motor-drive |
|
- | |||||
| 9 | 5303210984 | Bulkhead |
|
- | |||||
| 10 | 3204944 | Door-vent |
|
- | |||||
| 11 | 5303015298 | Cable |
|
- | |||||
| 12 | 5303202999 | Retainer |
|
- | |||||
| 13 | 3202941 | Arm |
|
- | |||||
| 14 | 3015312 | Screw |
|
- | |||||
| 15 | 3203075 | Clip |
|
- | |||||
| 16 | 5303270109 | Power Cord |
|
- | |||||
| 17 | 5303015323 | Strap |
|
- | |||||
| 18 | 5308017135 | Capacitor 35-10/370 |
|
- | |||||
| 19 | 5303015427 | Screw |
|
- | |||||
| 20 | 5303202961 | Harness |
|
- | |||||
| 21 | 3202962 | Divider |
|
- | |||||
| 22 | 3202963 | Insulation |
|
- |
