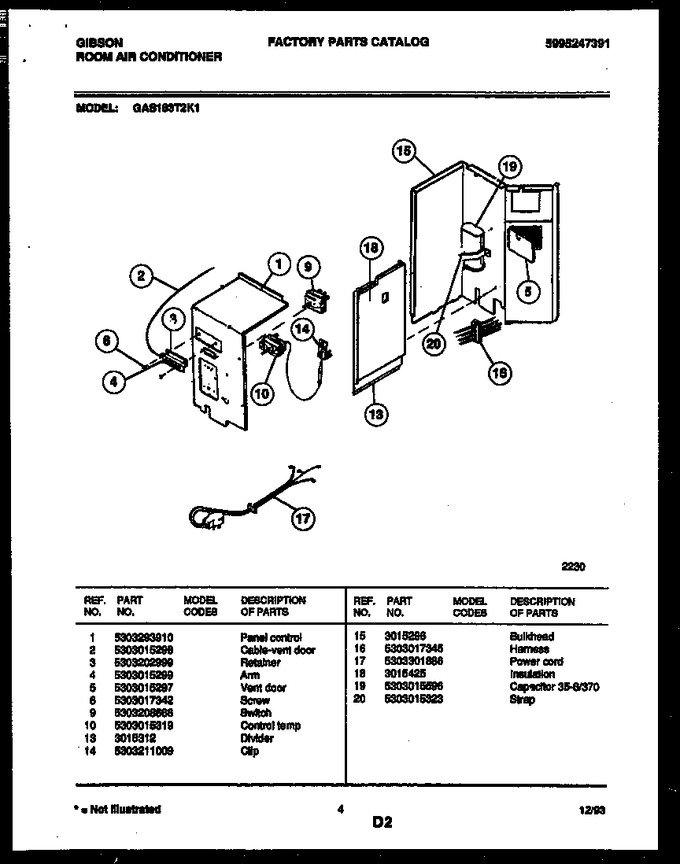

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303293910 | Panel - Control |
|
- | |||||
| 2 | 5303015298 | Cable - Vent Door |
|
- | |||||
| 3 | 5303202999 | Retainer |
|
- | |||||
| 4 | 5303015299 | Arm |
|
- | |||||
| 5 | 5303015297 | Vent Door |
|
- | |||||
| 6 | 5303017342 | Screw |
|
- | |||||
| 9 | 5303208666 | Switch |
|
- | |||||
| 10 | 5303015319 | Control Temp |
|
- | |||||
| 13 | 3015312 | Divider |
|
- | |||||
| 14 | 5303211009 | Clip |
|
- | |||||
| 15 | 3015296 | Bulkhead |
|
- | |||||
| 16 | 5303017345 | Harness |
|
- | |||||
| 17 | 5303301886 | Power Cord |
|
- | |||||
| 18 | 3015425 | Insulation |
|
- | |||||
| 19 | 5303015596 | Capacitor 35-6/370 |
|
- | |||||
| 20 | 5303015323 | Strap |
|
- |
