02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

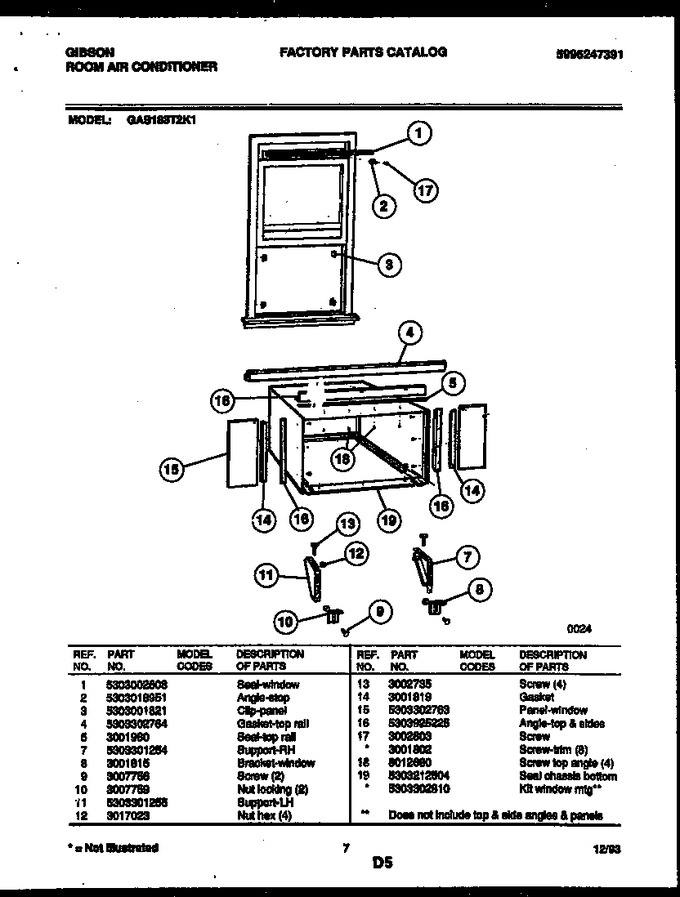

| 1 | 5303002608 | Seal - Window |
|
- | |||||
| 2 | 5303018951 | Angle-stop |
|
- | |||||
| 3 | 5303001821 | Clip-panel |
|
- | |||||
| 4 | 5303302764 | Gasket-top Rail |
|
- | |||||
| 5 | 3001980 | Seal - Top Rail |
|
- | |||||
| 7 | 5303301254 | Support, Rh |
|
- | |||||
| 8 | 3001815 | Bracket - Window |
|
- | |||||
| 9 | 3007756 | Screw (2) |
|
- | |||||
| 10 | 3007759 | Nut-locking (2) |
|
- | |||||
| 11 | 5303301255 | Support, Lh |
|
- | |||||
| 12 | 3017023 | Nut-hex (4) |
|
- | |||||
| 13 | 3002735 | Screw (4) |
|
- | |||||
| 14 | 3001819 | Gasket |
|
- | |||||
| 15 | 5303302763 | Panel-window |
|
- | |||||
| 16 | 5303925225 | Angle-top & Sides |
|
- | |||||
| 17 | 3002803 | Screw |
|
- | |||||
| 18 | 8012680 | Screw Top Angle (4) |
|
- | |||||
| 19 | 5303212504 | Seal - Chassis, Bottom |
|
- | |||||
| *65489 | 5303302810 | Kit Window Mtg (does Not Include Top & Side Angles & Pan |
|
- | |||||
| 17A | 3001802 | Screw-trim (8) (non-illustrated) |
|
- |
