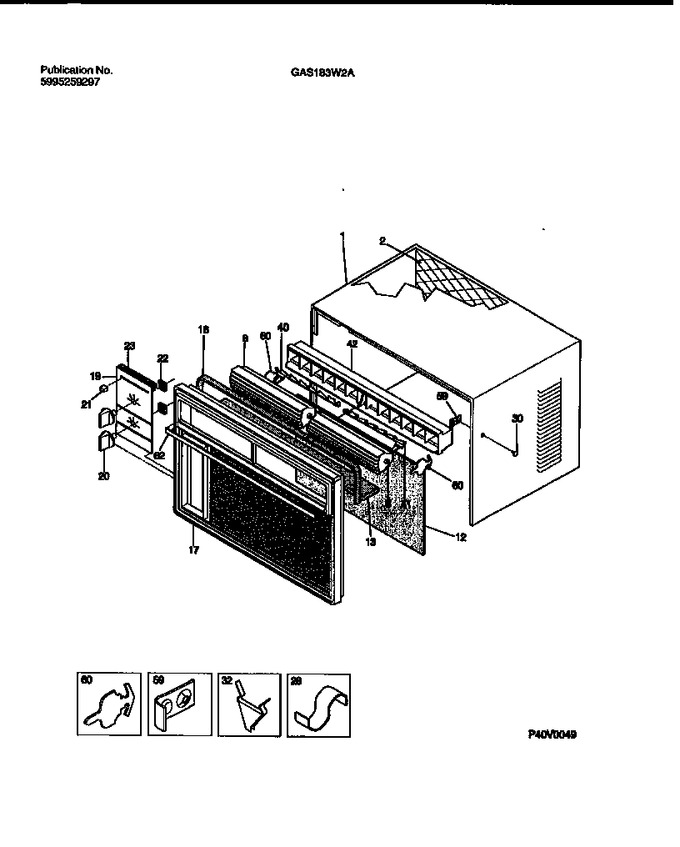

02 - Cabinet Front & Wrapper


03 - Controls


04 - Air Handling


05 - Compressor


06 - Window Mounts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303303545		Wrapper		Appelez-nous	-
2	5303210207		Panel - Rear		Appelez-nous	-
8	5303299967		Louver,(2)		Appelez-nous	-
12	5303014139		Filter		Appelez-nous	-
13	08017353		Seal - Mullion		Appelez-nous	-
16	08017132		Seal		Appelez-nous	-
17	5303301508		Front-complete		Appelez-nous	-
19	5303301509		Dial Plate		Appelez-nous	-
20	5303017300		Knob-control, (2)		Appelez-nous	-
21	5303017340		Knob - Slide		Appelez-nous	-
22	5303001775		Spacer - Dial Plate		Appelez-nous	-
23	5303001984		Seal - Dial Plate		Appelez-nous	-
28	5308010914		Clip-front/base		Appelez-nous	-
30	5303271346		Screw-front		Appelez-nous	-
32	5303001844		Clip-link, (2)		Appelez-nous	-
40	5303293555		Link-louvers, Lh		Appelez-nous	-
41	5303293554		Link-louvers, Rh		Appelez-nous	-
42	5303002459		Louvers W/ Link		Appelez-nous	-
59	08010928		Nut - Front Lock		Appelez-nous	-
60	3203495		Clip-filter, (2)		Appelez-nous	-
62	5303302811		Nameplate		Appelez-nous	-
