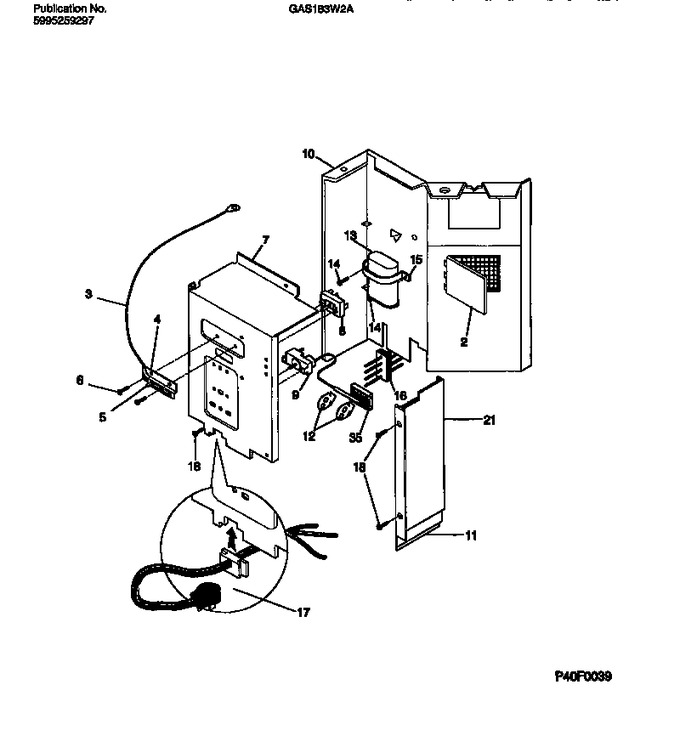

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303295752		Door		Appelez-nous	-
3	5303015298		Cable - Vent Door		Appelez-nous	-
4	5303202999		Retainer - Actuator		Appelez-nous	-
5	5303015299		Arm - Actuator		Appelez-nous	-
6	5303017342		Screw		Appelez-nous	-
7	5303296650		Panel-control		Appelez-nous	-
8	5303208666		Switch-selector		Appelez-nous	-
9	5303015319		Control - Temperature		Appelez-nous	-
10	5303295753		Partition - Control Area		Appelez-nous	-
11	5303017807		Divider - Vertical		Appelez-nous	-
12	5303017914		Clip - Control Bulb		Appelez-nous	-
13	5303306706		Capacitor, 370 V,6+30 Mfd		Appelez-nous	-
14	5303015427		Screw		Appelez-nous	-
15	5303303077		Strap - Capacitor		Appelez-nous	-
16	5303209983		Harness		Appelez-nous	-
17	5303301886		Cord - Electrical Power, 230 V		Appelez-nous	-
18	5303007754		Screw		Appelez-nous	-
21	5303303011		Insulation - Divider		Appelez-nous	-
35	3200761		Spacer - Control Bulb		Appelez-nous	-
