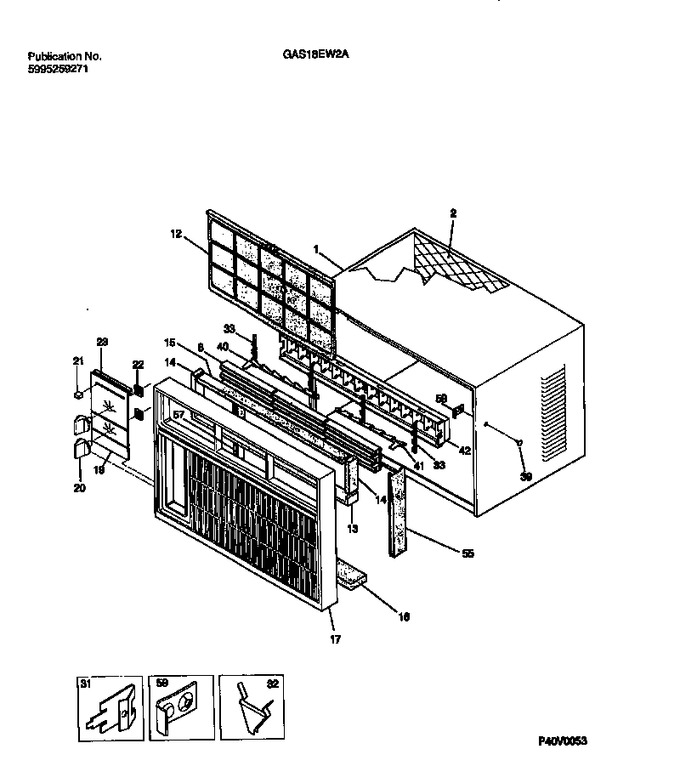

02 - Cabinet Front And Wrapper


03 - Controls


04 - Air Handling


05 - Compressor


06 - Window Mounts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303303545		Wrapper		Appelez-nous	-
2	5303210207		Panel - Rear		Appelez-nous	-
8	3017302		Louver		Appelez-nous	-
12	3017336		Filter		Appelez-nous	-
13	3018772		Seal Mullion		Appelez-nous	-
14	5303303148		Seal - Sides		Appelez-nous	-
15	5303271831		Seal - Top		Appelez-nous	-
16	5303281623		Seal - Bottom		Appelez-nous	-
17	5303212517		Front-complete		Appelez-nous	-
18	5303303691		Screw, (8)		Appelez-nous	-
19	5303212522		Dial Plate		Appelez-nous	-
19	5303310229		Dial Plate (serial No. Jk50522806 - Jk50523155)		Appelez-nous	-
20	5303017300		Knob-control, (2)		Appelez-nous	-
20	5303017340		Knob-slide (serial No. Jk50522806 - Jk50523155)		Appelez-nous	-
21	5303212504		Seal - Chassis, Bottom		Appelez-nous	-
22	5303001775		Spacer - Dial Plate		Appelez-nous	-
23	5303001984		Seal - Dial Plate		Appelez-nous	-
31	3200447		Clip - Front (2)		Appelez-nous	-
32	5303001844		Clip-link, (2)		Appelez-nous	-
33	3017779		Retainer-louver, (4)		Appelez-nous	-
39	134178901		Scre, Front   (Replaces: 5303293767)				$ 14.89
40	5303293555		Link-louvers, Lh		Appelez-nous	-
41	5303293554		Link-louvers, Rh		Appelez-nous	-
42	5303002459		Louvers W/ Link		Appelez-nous	-
55	3017335		Rail - Filter Rh		Appelez-nous	-
57	3017363		Rail - Filter, Lh		Appelez-nous	-
59	08010928		Nut - Front Lock		Appelez-nous	-
