SELECT A DIAGRAM
01 - Room Air Conditioner
02 - Cabinet Front And Wrapper
03 - Controls
04 - Air Handling
05 - Compressor
06 - Window Mounts
SELECT A DIAGRAM
New Model Search:

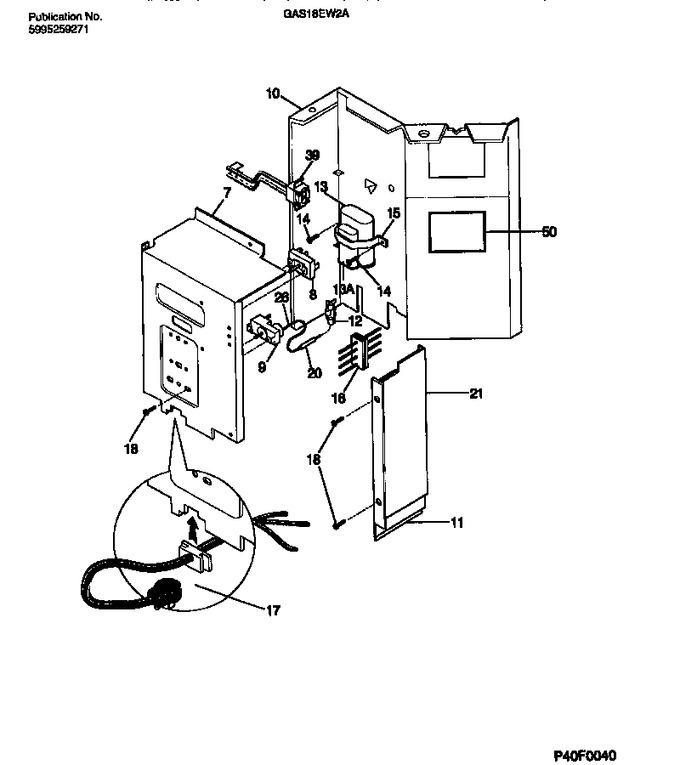

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 5303296650 | Panel-control |
|
- | |||||
| 8 | 5308017262 | Switch-selector |
|
- | |||||
| 9 | 5303002176 | Control-temperture |
|
- | |||||
| 10 | 5303295753 | Partition - Control Area |
|
- | |||||
| 11 | 5303017807 | Divider - Vertical |
|
- | |||||
| 12 | 5303211009 | Clip-control Bulb |
|
- | |||||
| 13 | 5303012032 | Capacitor, 370 V, 6 Mfd |
|
- | |||||
| 13 | 5308009041 | Capacitor, 370 V, 30 Mfd |
|
- | |||||
| 14 | 5303015427 | Screw |
|
- | |||||
| 15 | 5303306600 | Strap-capacitor |
|
- | |||||
| 16 | 5303015320 | Harness |
|
- | |||||
| 17 | 5303302880 | Cord-electric Power |
|
- | |||||
| 18 | 5303007754 | Screw |
|
- | |||||
| 21 | 5303303011 | Insulation - Divider |
|
- | |||||
| 39 | 3017076 | Harness-heater |
|
- | |||||
| 50 | 5303210367 | Plug-vent Door |
|
- | |||||
| *03400 | 3015312 | Screws (2) (serial No. Jk50522806 - Jk50523155) |
|
- | |||||
| *03401 | 5303015298 | Cable (serial No. Jk50522806 - Jk50523155) |
|
- | |||||
| *03402 | 5303015299 | Arm (serial No. Jk50522806 - Jk50523155) |
|
- | |||||
| *03403 | 5303202999 | Actuator (serial No. Jk50522806 - Jk50523155) |
|
- | |||||
| *03404 | 5303304975 | Vent Door (serial No. Jk50522806-jk50523155) |
|
- |
