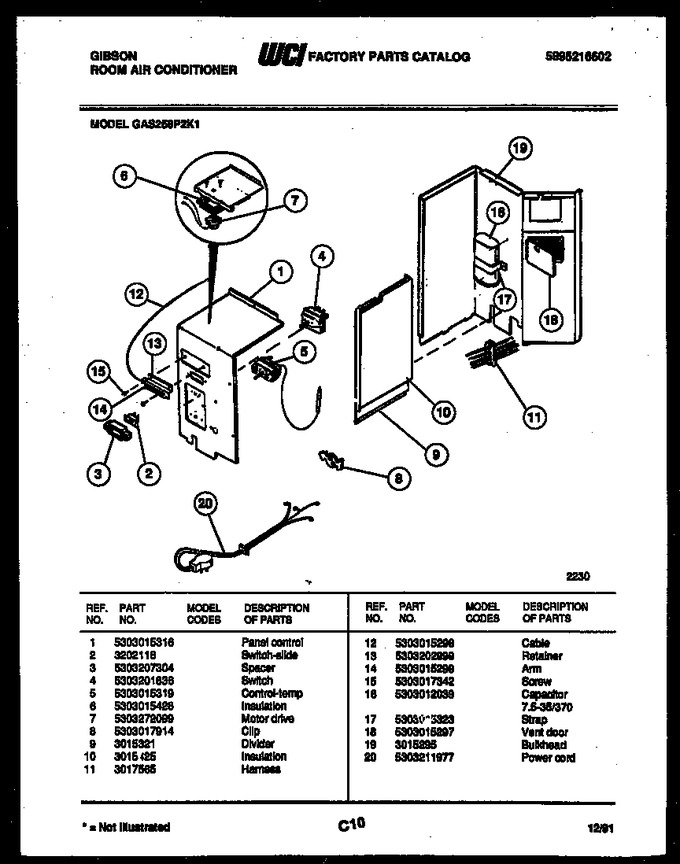

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015316 | Panel-control |
|
- | |||||
| 2 | 3202118 | Switch - Slide |
|
- | |||||
| 3 | 5303207304 | Spacer |
|
- | |||||
| 4 | 5303201836 | Switch |
|
- | |||||
| 5 | 5303015319 | Control Temp |
|
- | |||||
| 6 | 5303015428 | Insulation |
|
- | |||||
| 7 | 5303272099 | Motor Drive |
|
- | |||||
| 8 | 5303017914 | Clip |
|
- | |||||
| 9 | 3015321 | Divider |
|
- | |||||
| 10 | 3015425 | Insulation |
|
- | |||||
| 11 | 3017565 | Harness |
|
- | |||||
| 12 | 5303015298 | Cable |
|
- | |||||
| 13 | 5303202999 | Retainer |
|
- | |||||
| 14 | 5303015299 | Arm |
|
- | |||||
| 15 | 5303017342 | Screw |
|
- | |||||
| 16 | 5303012039 | Capacitor 7.5-35/370 |
|
- | |||||
| 17 | 5303015323 | Strap |
|
- | |||||
| 18 | 5303015297 | Vent Door |
|
- | |||||
| 19 | 3015295 | Bulkhead |
|
- | |||||
| 20 | 5303211977 | Power Cord |
|
- |
