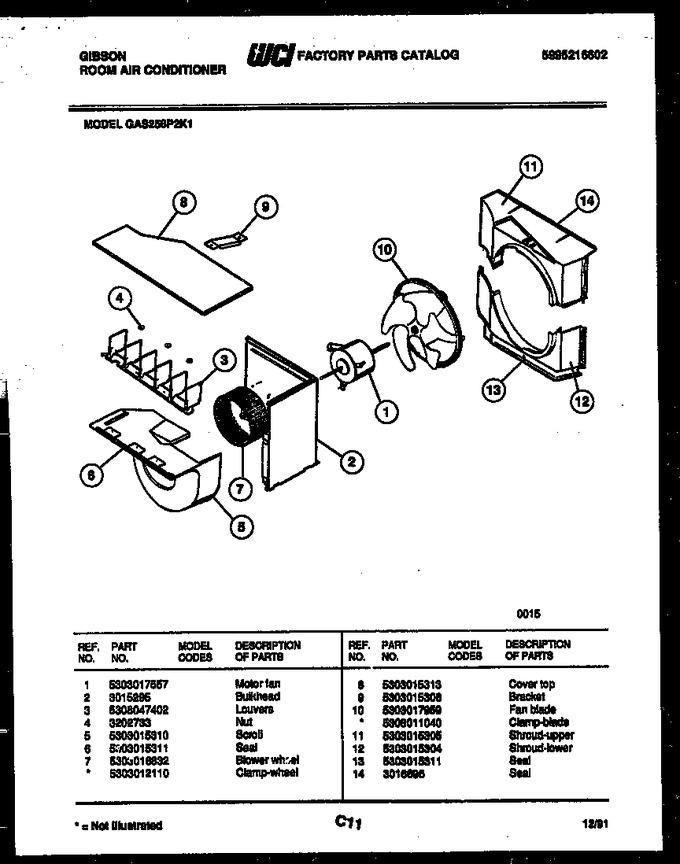

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017557 | Motor - Fan |
|
- | |||||
| 2 | 3015295 | Bulkhead |
|
- | |||||
| 3 | 5308047402 | Louvers |
|
- | |||||
| 4 | 3202733 | Nut |
|
- | |||||
| 5 | 5303015310 | Scroll |
|
- | |||||
| 6 | 5303015311 | Seal |
|
- | |||||
| 7 | 5303016832 | Blower Wheel |
|
- | |||||
| 8 | 5303015313 | Cover - Top |
|
- | |||||
| 9 | 5303015306 | Bracket |
|
- | |||||
| 10 | 5303017959 | Fan Blade |
|
- | |||||
| 11 | 5303015305 | Shroud - Upper |
|
- | |||||
| 12 | 5303015304 | Shroud - Lower |
|
- | |||||
| 13 | 5303015311 | Seal |
|
- | |||||
| 14 | 3016696 | Seal |
|
- | |||||
| 10A | 5308011040 | Clamp-blade (non-illustrated) |
|
- | |||||
| 7A | 5303012110 | Clamp-wheel (non-illustrated) |
|
