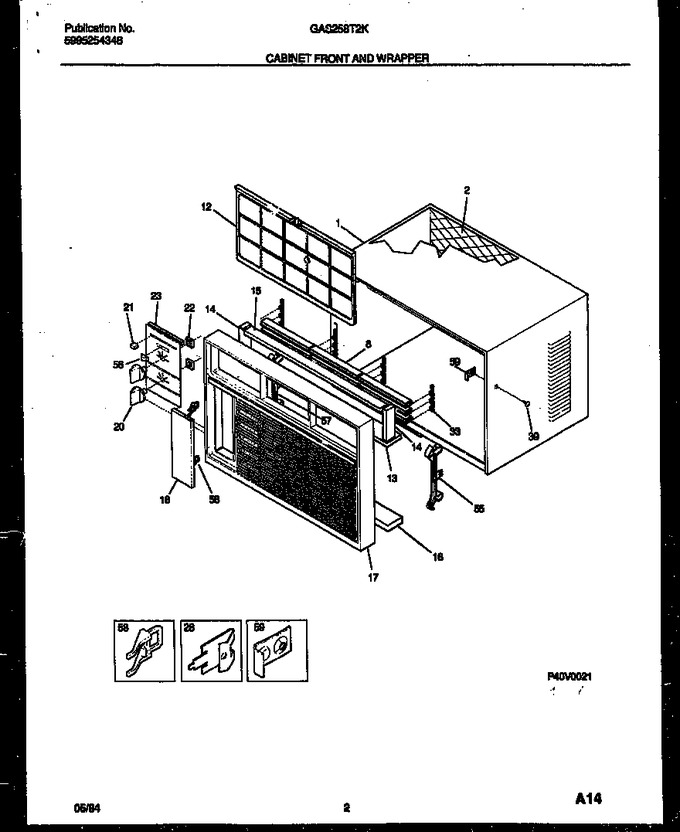

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303303545 | Wrapper |
|
- | |||||
| 2 | 5303303560 | Panel Rear |
|
- | |||||
| 8 | 3017302 | Louver |
|
- | |||||
| 12 | 3017336 | Filter |
|
- | |||||
| 13 | 3017299 | Seal Mullion |
|
- | |||||
| 14 | 5303207203 | Seal-sides |
|
- | |||||
| 15 | 5303271831 | Seal - Top |
|
- | |||||
| 16 | 5303281623 | Seal - Bottom |
|
- | |||||
| 17 | 5303212503 | Front Complete |
|
- | |||||
| 18 | 5303207308 | Door-front |
|
- | |||||
| 19 | 5303281624 | Dial Plate |
|
- | |||||
| 20 | 5303017300 | Knob-control, (2) |
|
- | |||||
| 21 | 5303017340 | Knob - Slide |
|
- | |||||
| 22 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 23 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 28 | 3200447 | Clip - Front (2) |
|
- | |||||
| 30 | 5303271346 | Screw-front |
|
- | |||||
| 33 | 3017303 | Clip-louver, 4 |
|
- | |||||
| 55 | 3017335 | Rail - Filter Rh |
|
- | |||||
| 56 | 3017341 | Knob - Slide, Switch |
|
- | |||||
| 57 | 3017363 | Rail - Filter, Lh |
|
- | |||||
| 58 | 5303017980 | Hinge - Door |
|
- | |||||
| 59 | 08010928 | Nut-front Lock, 59 |
|
- |
