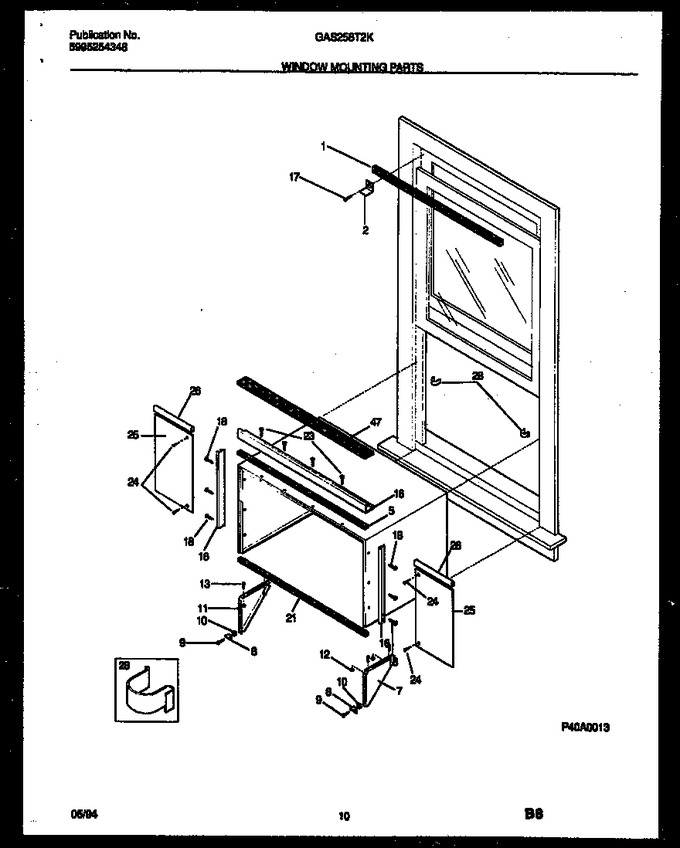

06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303002608 | Seal - Window |
|
- | |||||
| 2 | 5303211056 | Bracket |
|
- | |||||
| 5 | 3001980 | Seal - Top Rail |
|
- | |||||
| 7 | 5303301254 | Support, Rh |
|
- | |||||
| 8 | 3001815 | Bracket - Support |
|
- | |||||
| 9 | 3007756 | Screw - Sill Supt |
|
- | |||||
| 10 | 3007759 | Nut - Bracket |
|
- | |||||
| 11 | 5303301255 | Support, Lh |
|
- | |||||
| 12 | 3017023 | Nut,hex ,10-32 ,2 |
|
- | |||||
| 13 | 5303281649 | Screw - Support, 4 |
|
- | |||||
| 16 | 5303925225 | Rail-top/retainer Sides |
|
- | |||||
| 17 | 3002803 | Screw - Sash Lock |
|
- | |||||
| 18 | 5308007573 | Screw |
|
- | |||||
| 21 | 5303212504 | Seal - Chassis, Bottom |
|
- | |||||
| 23 | 5308012680 | Screw, Rail |
|
- | |||||
| 24 | 5308002974 | Screw |
|
- | |||||
| 25 | 5303302763 | Panel-window, Cut To Size |
|
- | |||||
| 26 | 5303302765 | Gasket-panel |
|
- | |||||
| 28 | 5303001821 | Clip-panel |
|
- | |||||
| 47 | 5303302764 | Gasket-top Rail |
|
- |
