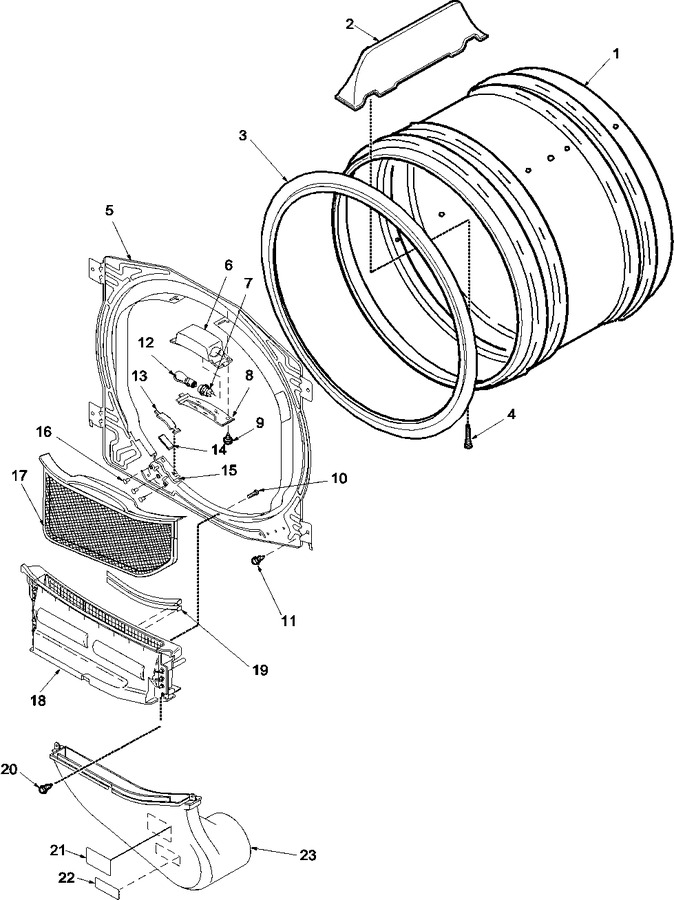

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y504468 | Assy Cylinder |
|
- | |||||
| 2 | 503703 | Baffle, Cylinder (wht) |
|
$ 28.73 | |||||
| 3 | WP37001132 | Seal, Cylinder (Replaces: 501801) |
|
Immediately | $ 54.31 | ||||
| 4 | Y62588 | Screw, 10bt-12 X 1 Tap |
|
- | |||||
| 5 | 503616W | Assy, Blkhd Front Lit (wht) |
|
- | |||||
| 6 | 503622 | Housing, Cylinder Light |
|
- | |||||
| 7 | 504458 | Holder, Lamp |
|
- | |||||
| 8 | Y503623 | Lens, Light |
|
- | |||||
| 13 | 501553 | Glide,cylinder(tan) |
|
- | |||||
| 14 | WP500121 | Pad, Felt-coin (Replaces: 500121) |
|
Immediately | $ 7.75 | ||||
| 15 | WP37001036 | Bracket, Cylinder Glide (Replaces: 37001036) |
|
Immediately | $ 51.65 | ||||
| 16 | WP489128 | Screw, No.8-32x3/8`` Hex (Replaces: 37001031) |
|
$ 9.79 | |||||
| 17 | WP37001142 | Filter,lint-wht (Replaces: Y503627) |
|
Immediately | $ 112.23 | ||||
| 18 | 505528 | Assy, Air Duct |
|
- | |||||
| 19 | 503625 | Sensor, Moisture |
|
$ 22.91 | |||||
| 20 | D501285 | Screw, No.12 X 9/16 (Replaces: 501285) |
|
$ 2.76 | |||||
| 21 | 500049 | Sticker |
|
- | |||||
| 22 | 56259 | Sticker |
|
- | |||||
| 23 | Y503626 | Duct, Air Lower |
|
- |
