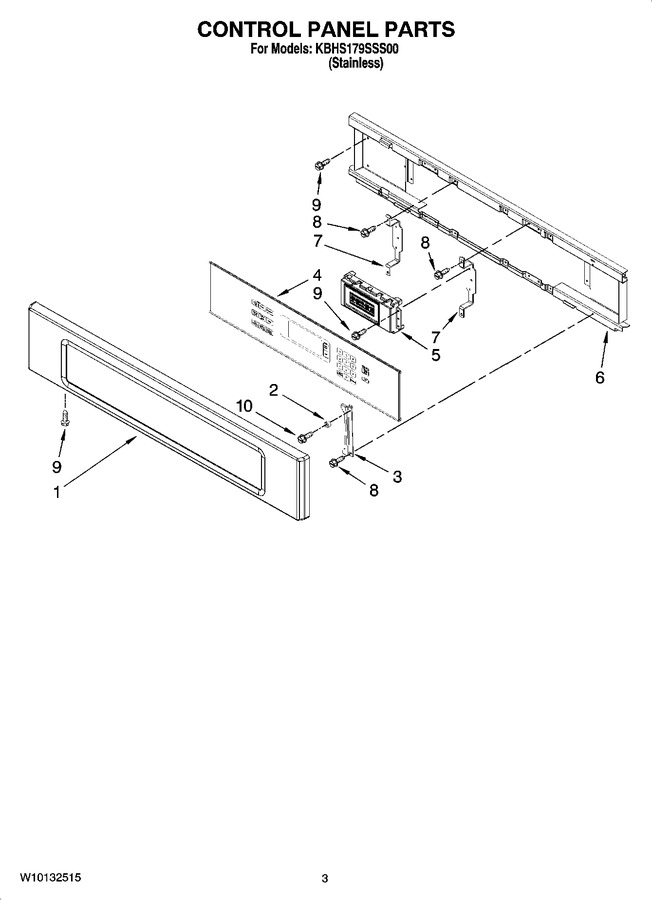

02 - Control Panel Parts


03 - Microwave Door Parts


04 - Cabinet And Stirrer Parts


05 - Internal Microwave Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303717SS		Panel, Control		Appelez-nous	-
2	W10105790		Bumper, Door   (Replaces: 9760749)				$ 6.35
3	8303797		Bracket, Glass Touch		Appelez-nous	-
4	8304334		Keyboard, Glass Touch				$ 249.74
5	W10118736		User Inferface		Appelez-nous	-
6	8303720		Backer, Control				$ 38.91
7	8303887		Bracket,enclosure				$ 7.82
8	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
9	WP3400805		Screw   (Replaces: 3400805)				$ 6.47
10	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
