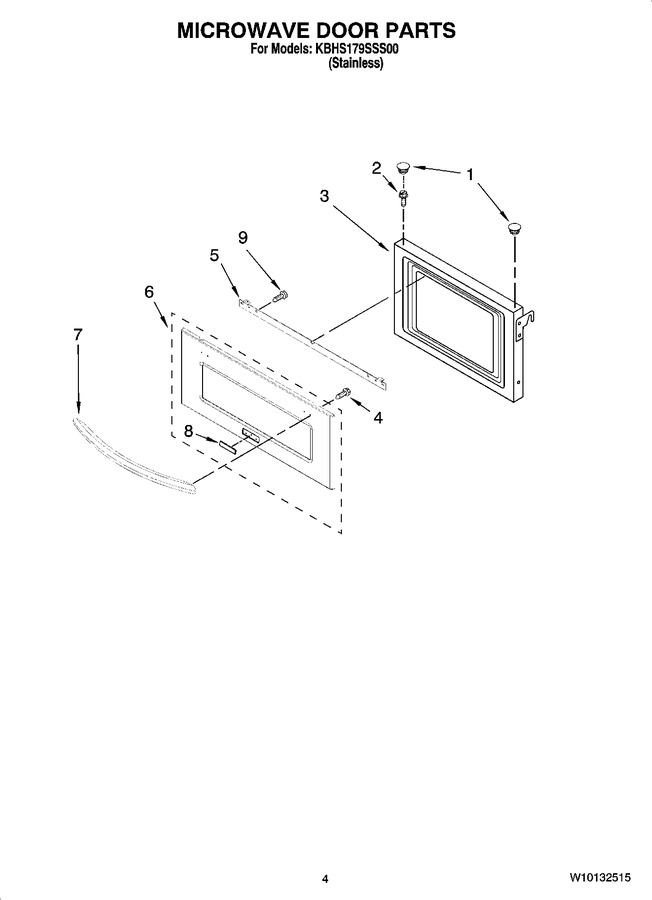

03 - Microwave Door Parts
04 - Cabinet And Stirrer Parts
05 - Internal Microwave Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11756840 | Button, Plug (2) (Replaces: 8304588BL) |
|
$ 10.58 | |||||
| 2 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 3 | W10120488 | Door, Microwave |
|
$ 204.23 | |||||
| 4 | WP4449154 | Screw (4) (Replaces: 4449154) |
|
$ 6.80 | |||||
| 5 | 8303033 | Bracket, Handle |
|
$ 39.61 | |||||
| 6 | 8304455 | Glass Assembly |
|
- | |||||
| 7 | 8303775SS | Handle, Door |
|
- | |||||
| 8 | 8304603SS | Badge |
|
$ 51.11 | |||||
| 9 | WP7101P246-60 | Screw (Replaces: W10143304) |
|
$ 6.98 |
