SELECT A DIAGRAM

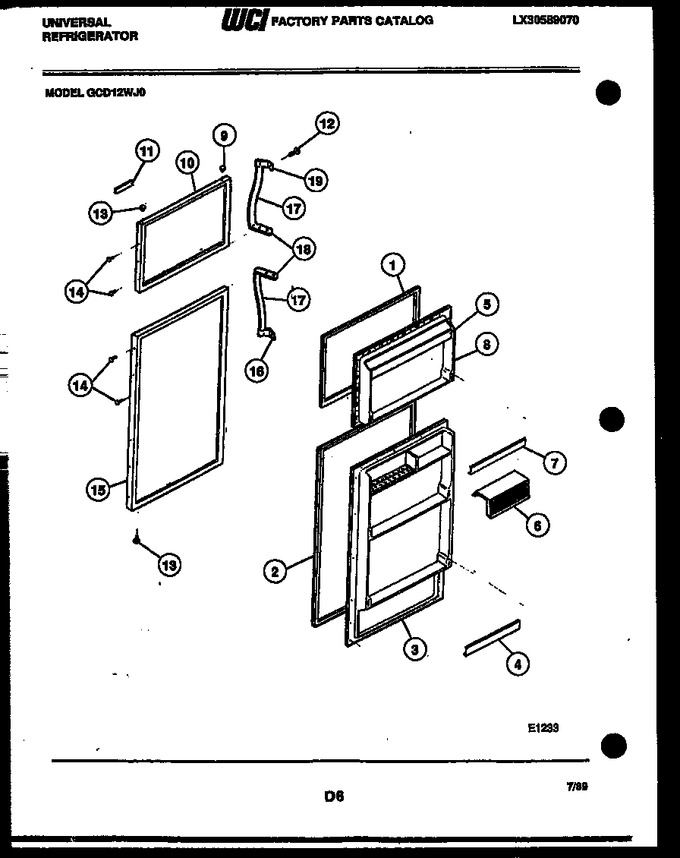

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186932-05		Gasket-freezer Door		Appelez-nous	-
2	G186932-04		Gasket-refr Door		Appelez-nous	-
3	G163942-02		Inner Panel-refr		Appelez-nous	-
4	3001539		Door Rack-refr (2)		Appelez-nous	-
5	G166151-03		Rack-juice		Appelez-nous	-
6	3205767		Butter Door		Appelez-nous	-
7	3001511		Door Rack-frzr		Appelez-nous	-
8	G167781-02		Inner Panel-freezer		Appelez-nous	-
9	G169332-11		Button Plug, Almond		Appelez-nous	-
10	G186186-11		Freezer Door-almond		Appelez-nous	-
11	G171161-01		Nameplate-frame		Appelez-nous	-
12	G185566		Screw		Appelez-nous	-
13	G183138		Hinge Bearing (8)		Appelez-nous	-
14	G162977-11		Button Plug-almond		Appelez-nous	-
15	G186184-11		Refr Door-almond		Appelez-nous	-
16	G179801		Handle End-bottom		Appelez-nous	-
17	3001531		Handle-grip (2)		Appelez-nous	-
18	G187329-01		Handle End (2)		Appelez-nous	-
19	G179800		Handle End-top		Appelez-nous	-
*43937	G89643		Insulation-door (bulk)		Appelez-nous	-
11A	G153407-60		Tape-nameplate Mounting (non-illustrated)		Appelez-nous	-
3A	G162585		Screw		Appelez-nous	-
8A	G162585		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
