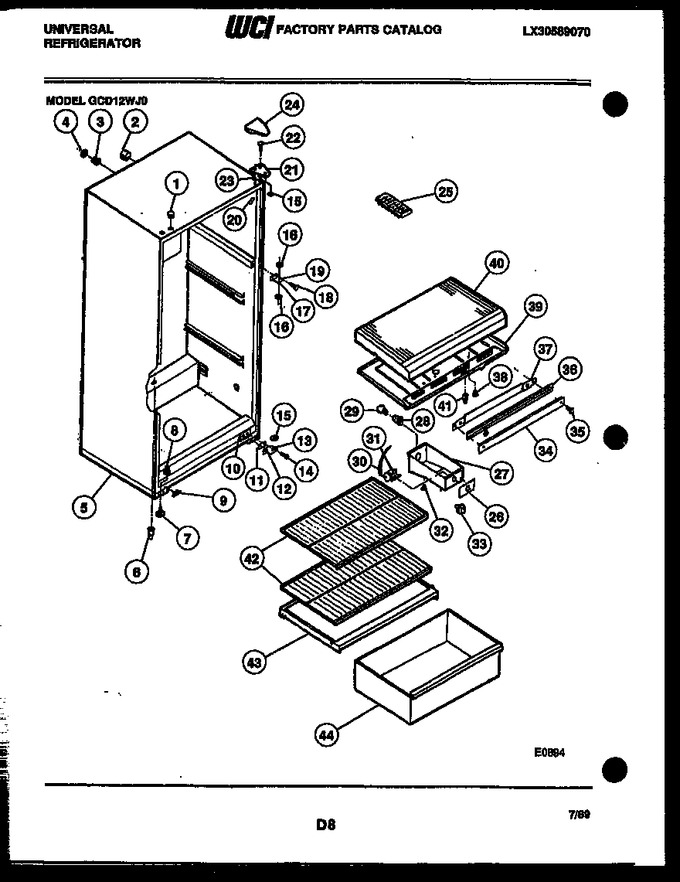

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G174747-11		Button-plug, Almond		Appelez-nous	-
2	G85642		Tube, Rubber		Appelez-nous	-
3	G174733		Ferrule, Inner		Appelez-nous	-
4	G174734		Ferrule Outer		Appelez-nous	-
5	G161998-01		Cabinet Base		Appelez-nous	-
6	G163205		Drain Tube		Appelez-nous	-
7	G185713		Leveling Screw (2)		Appelez-nous	-
8	G183073		Anchor Nut (2)		Appelez-nous	-
9	G166912		Plug-hinge Hole		Appelez-nous	-
10	G179797		Tapping, Plate (2)		Appelez-nous	-
11	G163203		Shim-bottom Hinge		Appelez-nous	-
12	G181019		Bracket-bottom Hinge		Appelez-nous	-
13	G166505		Pin-bottom Hinge		Appelez-nous	-
14	G181020		Screw-hinge Mounting (2)		Appelez-nous	-
15	G103903		Washer, Nylon				$ 3.10
16	G164355		Washer-5/16 Nylon (2)		Appelez-nous	-
17	G142220		Pin		Appelez-nous	-
18	G183103		Screw-hinge Mounting (2)		Appelez-nous	-
19	G163207		Bracket-center Hinge		Appelez-nous	-
20	G162364-11		Corner Trim-almond		Appelez-nous	-
21	G183714		Hinge-top		Appelez-nous	-
22	G167103		Screw-hinge Mounting (2)		Appelez-nous	-
23	G183861		Shim Top Hinge		Appelez-nous	-
24	G183558-11		Hinge Cover-almond		Appelez-nous	-
25	G156376-01		Ice Tray (2)		Appelez-nous	-
26	3001339		Label-control Box		Appelez-nous	-
27	G174655-19		Control Box		Appelez-nous	-
28	G168302		Light Socket		Appelez-nous	-
29	G25806		Light Bulb		Appelez-nous	-
30	G142176-26		Sleeve-plastic		Appelez-nous	-
31	G162205-09		Control-temperature		Appelez-nous	-
32	G176554-01		Plug-control Box		Appelez-nous	-
33	3001335		Knob-temperature Control		Appelez-nous	-
34	3916134		Mullion-almond		Appelez-nous	-
35	G183103		Screw-mullion Mounting		Appelez-nous	-
36	G187921		Heater-mullion		Appelez-nous	-
37	G166709		Strap, Mullion Mounting		Appelez-nous	-
38	G162673		Screw-top Mounting		Appelez-nous	-
39	3016980		Top Panel-refrigerator		Appelez-nous	-
40	G163220		Divider, Styrofoam		Appelez-nous	-
41	G162672		Light Switch		Appelez-nous	-
42	G172172-01		Shelf-sliding (2)		Appelez-nous	-
43	G162957-01		Cover-storage Pan		Appelez-nous	-
44	G162973-32		Pan-storage		Appelez-nous	-
21A	G157591		Plate-tapping (2) (non-illustrated)		Appelez-nous	-
27A	G187363		Screw		Appelez-nous	-
31A	G107080		Screw		Appelez-nous	-
33A	G178402-01		Energy Saver Switch (non-illustrated)		Appelez-nous	-
35A	G166847		Washer-no. 10 Steel (2) (non-illustrated)		Appelez-nous	-
35B	G166848		Spacer-mullion (2) (non-illustrated)		Appelez-nous	-
