SELECT A DIAGRAM

01 - Access Panel Assembly


02 - Base


03 - Base Assembly


04 - Blower Assembly


05 - Cabinet


06 - Cabinet


07 - Cabinet (rear)


08 - Control Panel


09 - Door


10 - Front


11 - Heater


12 - Lid Lock


13 - Motor


14 - Motor Assembly


15 - Transmission


16 - Tub


17 - Tub Cover


18 - Tumbler

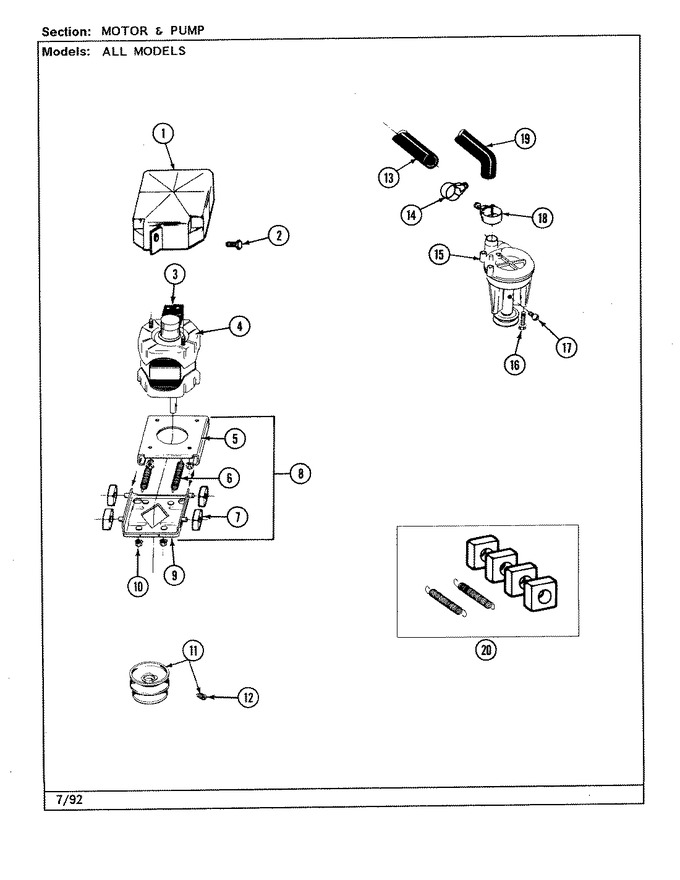

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215098		Shield, Motor	A0	Appelez-nous	-
2	WPW10346892		Screw   (Replaces: 213121)	A0		Immediately	$ 6.47
3	205133		Motor External Start Switch	A0	Appelez-nous	-
3	205132		Switch, Motor Start	A0	Appelez-nous	-
3	206505		Switch, Motor Start	A0	Appelez-nous	-
4	12002351		Motor (one Speed)   (Replaces: 201805)	A0		Immediately	$ 170.98
5	214956		Mount, Motor/upper	A0	Appelez-nous	-
6	202718		Tension Springs	A0		Immediately	$ 200.35
7	205000		Glide Kit (4 W/poly Lube)   (Replaces: 204998)	A0			$ 62.00
8	205999		Motor Mount Assm Complete	A0			$ 61.84
9	205908		Lower Motor Mount	A0	Appelez-nous	-
10	WP3400029		Nut, Washered Lock   (Replaces: Y311426)	A0		Immediately	$ 6.98
11	200816		Pulley, Motor (w/set Screw)	A0	Appelez-nous	-
12	Y053241		Set Screw, Pulley	A0	Appelez-nous	-
13	WP22001448		Hose   (Replaces: 215365)	A0			$ 79.87
14	WP285655		Hose Clamp - 1-5/8 Inch   (Replaces: 200461)	A0		Immediately	$ 7.55
15	202203		Pump As Pak	A0	Appelez-nous	-
16	WPY014874		Screw, Hex Hd No.10 X 1/2 Inc   (Replaces: 211880)	A0			$ 6.98
17	WP3390631		Screw, Bearing Insert   (Replaces: Y015408)	A0			$ 7.04
18	WP3367052		Clamp, Hose   (Replaces: 202574)	A0			$ 7.49
19	WP213045		Drain Hose-tub To Pump   (Replaces: 213045)	A0		Immediately	$ 43.57
20	205000		Glide & Spring Kit	A0			$ 62.00

    View Diagram in Separate Window       Print Part List
