SELECT A DIAGRAM

01 - Access Panel Assembly


02 - Base


03 - Base Assembly


04 - Blower Assembly


05 - Cabinet


06 - Cabinet


07 - Cabinet (rear)


08 - Control Panel


09 - Door


10 - Front


11 - Heater


12 - Lid Lock


13 - Motor


14 - Motor Assembly


15 - Transmission


16 - Tub


17 - Tub Cover


18 - Tumbler

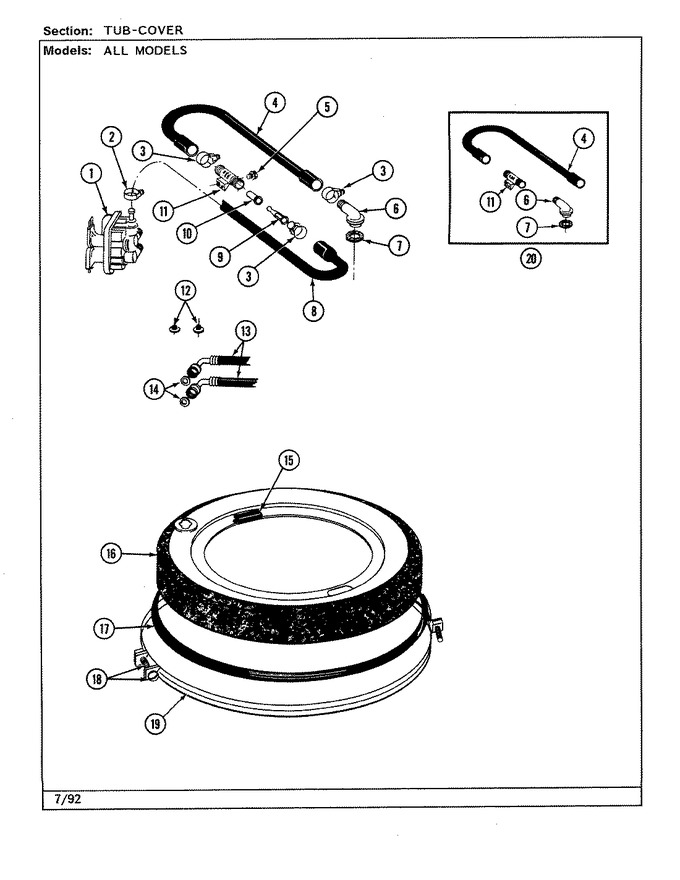

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	205613		Water Valve	A0		Immediately	$ 103.57
2	WP596669		Hose Clamp   (Replaces: 201575)	A0		Immediately	$ 7.56
3	WP596669		Hose Clamp - 1-1/16 Inch   (Replaces: 202515)	A0		Immediately	$ 7.56
4	WPY215234		Injector Fill Hose   (Replaces: Y215234)	A0			$ 83.54
5	Y310632		Screw	A0	Appelez-nous	-
6	215235		Injector Tube	A0			$ 16.14
7	215233		Seal For Injector Tube	A0			$ 5.84
8	WP213013		Hose, Injector   (Replaces: 213013)	A0		Immediately	$ 44.40
9	WP213015		Injector Nozzle   (Replaces: 213015)	A0		Immediately	$ 7.29
10	WP216201		Valve For Injector Sub   (Replaces: 213016)	A0		Immediately	$ 18.88
11	WP22213057		Sleeve For Injector   (Replaces: 213057)	A0			$ 8.06
12	200961		Screen Washer, Inlet Hose	A0	Appelez-nous	-
13	WP76314		Inlet Hose Assy.   (Replaces: 200672)	A0			$ 38.79
14	Y013783		Gasket, Inlet Hose	A0			$ 18.72
15	215232		Unbalance Bumper	A0	Appelez-nous	-
16	207775		Tub Cover Assy	A0	Appelez-nous	-
17	WP211232		Seal   (Replaces: 211232)	A0			$ 62.96
18	205529		Nut & Bolt Kit For Tub Clam	A0			$ 6.58
19	200846		Clamp - Tub Cover	A0			$ 62.11
20	206531		Injector Hose Kit	A0	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
