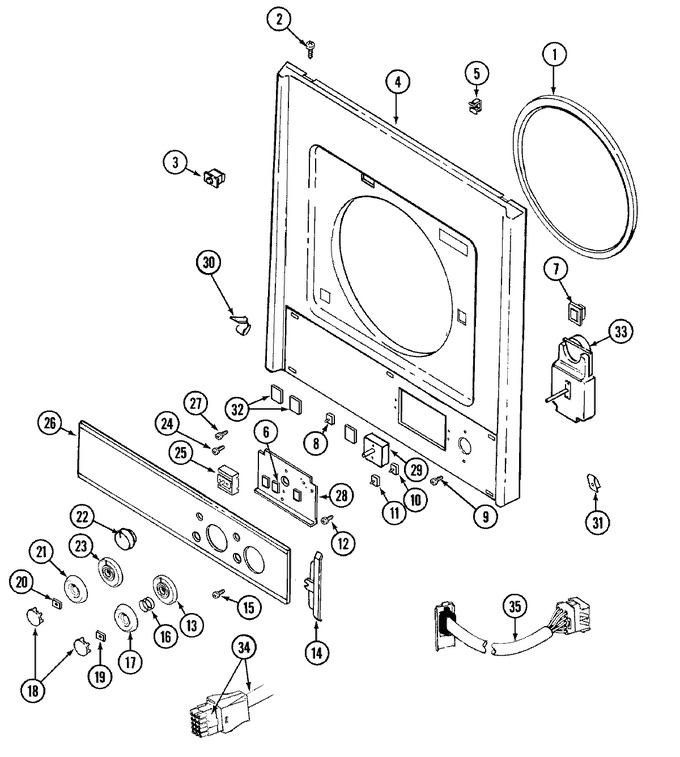

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 314286 | Seal For Front Panel | A0 |
|
$ 90.56 | ||||
| 2 | WP1163283 | Screw, No.8 X 1/2 Inch (Replaces: 212277) | A0 |
|
$ 6.47 | ||||
| 3 | W10169313 | Switch, Door (Replaces: Y305753) | A0 |
|
Immediately | $ 29.18 | |||
| 3 | W10169313 | Switch, Door (Replaces: 33001509) | 16 |
|
Immediately | $ 29.18 | |||
| 4 | WP98008544 | Panel, Fastener (Replaces: 33001486) | A0 |
|
$ 11.89 | ||||
| 4 | 33001190 | Panel, Front (alm) | A0 |
|
- | ||||
| 5 | Y310376 | Clip, Wire Harness | A0 |
|
- | ||||
| 6 | 315287 | Bumper Small | A0 |
|
- | ||||
| 7 | LA-1003 | Catch, Door (female) (Replaces: Y304578) | A0 |
|
Immediately | $ 24.51 | |||
| 8 | 308017 | Switch, Dryer Temperature | A0 |
|
- | ||||
| 9 | 216042 | Screw | A0 |
|
- | ||||
| 10 | 207782 | Switch, Water Temperature | A0 |
|
- | ||||
| 11 | 22001188 | Switch, Rotary | A0 |
|
$ 100.07 | ||||
| 12 | WP90767 | Screw (Replaces: 211294) | A0 |
|
Immediately | $ 7.04 | |||
| 13 | 22001034 | Knob, Timer (blk) | A0 |
|
- | ||||
| 14 | 315267 | End Cap,control Panel (blk) | A0 |
|
- | ||||
| 15 | WP8281227 | Screw,hex Head (brake Drum) (Replaces: 211000) | A0 |
|
$ 9.40 | ||||
| 16 | 211065 | Spring, Timer Knob | A0 |
|
$ 5.70 | ||||
| 17 | 215828 | Knob, Timer (blk) | A0 |
|
$ 11.97 | ||||
| 18 | 216193 | Cap, Timer Knob (blk) | A0 |
|
- | ||||
| 19 | 211605 | Retainer, Timer Knob | A0 |
|
- | ||||
| 20 | W10155650 | Nut (Replaces: 312273) | A0 |
|
$ 12.03 | ||||
| 21 | 315041 | Knob, Timer | A0 |
|
- | ||||
| 22 | 33001291 | Knob, Selector Switch (blk) | A0 |
|
- | ||||
| 23 | 33001009 | Dial, Dryer Timer (blk) Na | A0 |
|
- | ||||
| 24 | WP488234 | Screw, Switches (Replaces: 315317) | A0 |
|
$ 6.07 | ||||
| 25 | Y308025 | Switch, Push To Start (blk) | A0 |
|
$ 48.47 | ||||
| 26 | 33001008 | Panel, Control (blk) | A0 |
|
- | ||||
| 27 | 215952 | Screw | A0 |
|
- | ||||
| 28 | 315237 | Bracket For Switches & Timer | A0 |
|
- | ||||
| 29 | WP33001034 | Timer, Dryer (Replaces: 33001034) | A0 |
|
Immediately | $ 338.80 | |||
| 30 | 314482 | Fastener, Spring | A0 |
|
- | ||||
| 31 | 488660 | Fastener, Speednut (Replaces: 33001292) | A0 |
|
- | ||||
| 32 | 315286 | Bumper Large | A0 |
|
- | ||||
| 33 | 22001180 | Timer | A0 |
|
$ 175.26 | ||||
| 34 | 22001270 | Harness, Wire (upr.-canada) | A0 |
|
- | ||||
| 34 | 22001426 | Wire Harness (upr. Canada) | A3 |
|
- | ||||
| 35 | 22001431 | Wire Harness (lwr-canada) Na | A3 |
|
- | ||||
| 35 | 22001272 | Harness, Wire (lwr.-canada) | A0 |
|
- | ||||
| 36 | 33001368 | Wire Harness, Dryer | A3 |
|
- | ||||
| 36 | 33001553 | Harness, Wire (dryer) | 16 |
|
- | ||||
| 36 | 33001041 | Wire Harness, Dryer (canada) | A0 |
|
- |
