LSE7804ADL | TransGlobal : Appliance Model Lookup

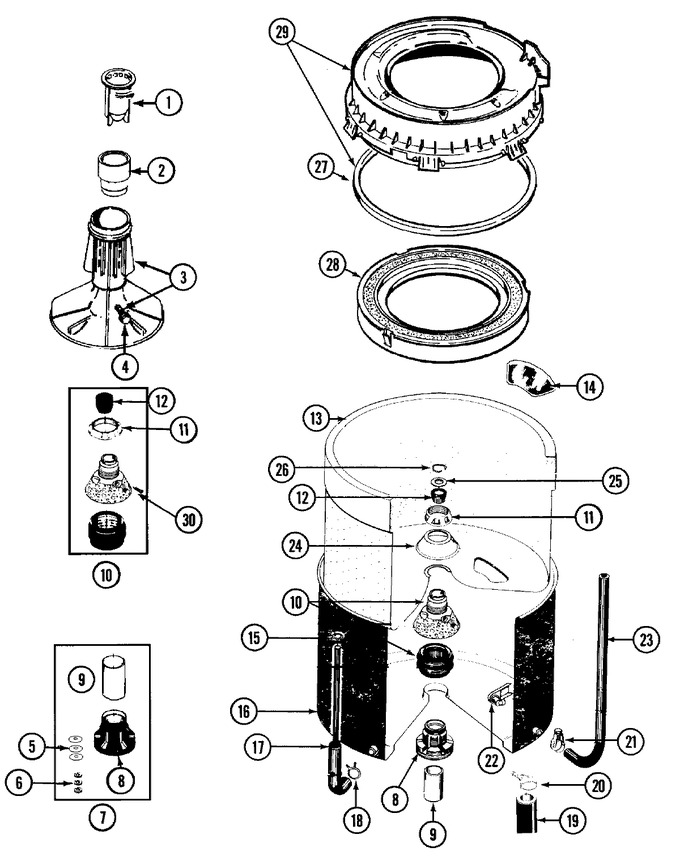

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	22001294	Cup, Dispensing	A0	Appelez-nous	-
2	22001295	Housing, Dispenser	A0	Appelez-nous	-
3	207538	Agitator W/lock Screw	A0			$ 102.74
4	206478	Screw & Washer For Agitator	A0	Appelez-nous	-
5	211100	Washer, Cushion	A0	Appelez-nous	-
6	Y054867	Washer, Lock	A0	Appelez-nous	-
7	6-2040130	Tub Bearing Repair Kit (Replaces: 204013)	A0		Immediately	$ 73.68
8	6-2040130	Bearing, Tub (Replaces: 200824)	A0		Immediately	$ 73.68
9	211130	Liner, Tub Bearing	A0			$ 724.10
10	204012	Mounting Stem Repair Kit	A0	Appelez-nous	-
11	211047	Nut, Clamping (inner Tub)	A0	Appelez-nous	-
12	WP6-0A57420	Seal, Agitator Drive Shaft (Replaces: Y0A4298)	A0		Immediately	$ 33.64
13	22001140	Tub, Inner (large-wht)	A0	Appelez-nous	-
14	207219	Filter, Self-cleaning	A0			$ 58.35
15	WP596669	Clamp,water Level Swtch Tube (Replaces: 410296)	A0		Immediately	$ 7.56
16	22001116	Tub, Outer (stack)	A0	Appelez-nous	-
17	22001073	Tube, Water Level Switch	A0	Appelez-nous	-
18	WP285655	Clamp, 1-1/16`` (Replaces: 211641)	A0		Immediately	$ 7.55
19	WP213045	Drain Hose-tub To Pump (Replaces: 213045)	A0		Immediately	$ 43.57
20	WP285655	Clamp,hose (tub Outlet) (Replaces: 201011)	A0		Immediately	$ 7.55
21	WP489503	Clamp - 15/16`` (Replaces: 205161)	A0		Immediately	$ 9.68
22	214434	Spout, Deflector	A0			$ 43.09
23	214495	Tube, Inlet To Tub	A0			$ 30.61
24	211210	Washer,clamping Nut(stainless)	A0			$ 5.84
25	WPY015666	Washer,retaining(center Seal)- (Replaces: Y015666)	A0			$ 6.96
26	Y015667	Retaining Ring	A0			$ 8.70
27	WP22001007	Gasket (Replaces: 22001007)	A0		Immediately	$ 61.54
28	22001142	Ring, Balance (w/concrete)	A0			$ 116.24
29	22001299	Tub Cover & Gasket Assembly	A0			$ 250.97
30	22001423	Set Screw, Mtg. Stem (Replaces: 211618)	A0			$ 45.54
