SELECT A DIAGRAM

01 - Cover


02 - Wrapper


03 - Fan


04 - Condenser


05 - Compressor

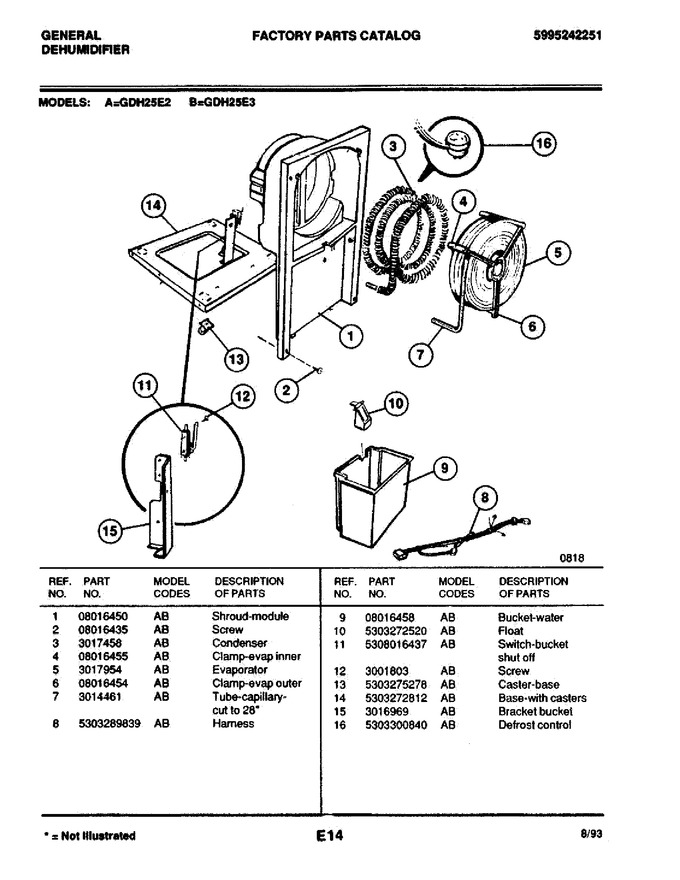

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08016450		Shroud-module		Appelez-nous	-
2	08016435		Screw		Appelez-nous	-
3	3017458		Condenser		Appelez-nous	-
4	08016455		Clamp-evaporator Inner		Appelez-nous	-
5	3017954		Evaporator		Appelez-nous	-
6	08016454		Clamp-evaporator Outer		Appelez-nous	-
7	3014461		Capillary Tube, Cut To 28``		Appelez-nous	-
8	5303289839		Harness		Appelez-nous	-
9	08016458		Bucket-water		Appelez-nous	-
10	5303272520		Float		Appelez-nous	-
11	5308016437		Switch- Bucket				$ 41.55
12	3001803		Screw-front		Appelez-nous	-
13	5303275278		Caster-base				$ 30.40
14	5303272812		Base-with Casters		Appelez-nous	-
15	3016969		Bracket Bucket		Appelez-nous	-
16	5303300840		Thermostat Defrost		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
