New Model Search:

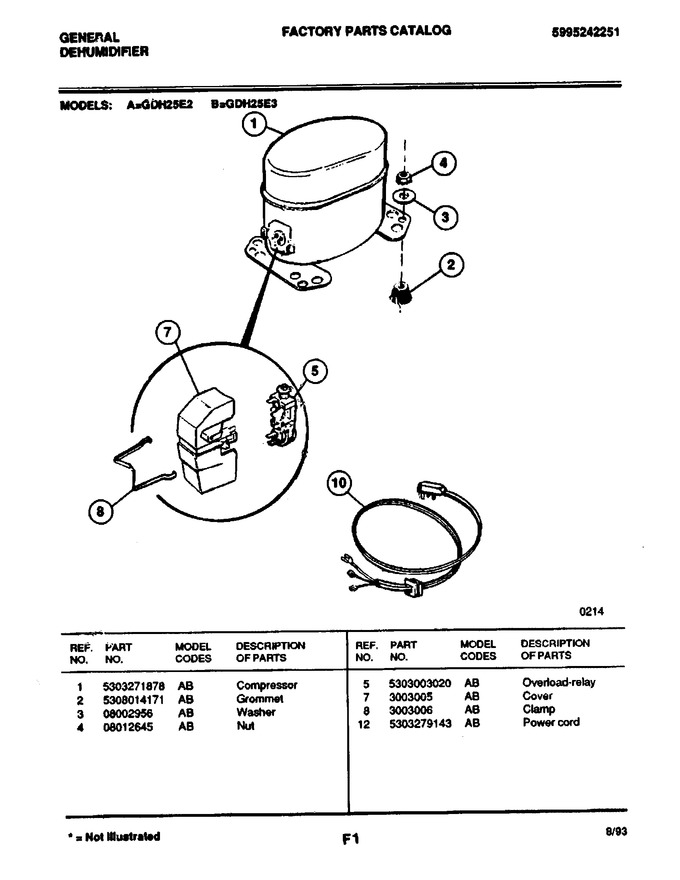

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303271878 | Compressor |
|
- | |||||
| 2 | 5308014171 | Grommet |
|
- | |||||
| 3 | 08002956 | Washer |
|
- | |||||
| 4 | 08012645 | Nut |
|
- | |||||
| 5 | 5303003020 | Overload/relay |
|
- | |||||
| 7 | 3003005 | Cover |
|
- | |||||
| 8 | 3003006 | Clamp |
|
- | |||||
| 12 | 5303279143 | Power Cord |
|
- |
