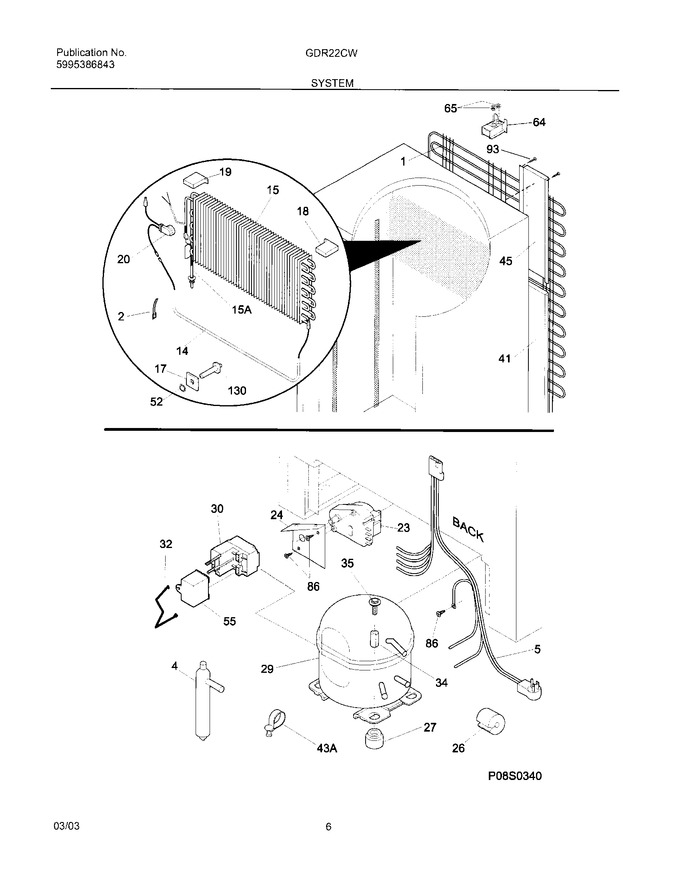

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	5308000110		Strap-evap/heater, Aluminum			Immediately	$ 59.82
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216538000		Harness,electrical		Appelez-nous	-
5	216764600		Harness,electrical		Appelez-nous	-
14	216608500		Heater-defrost				$ 161.22
15	216751300		Evaporator				$ 289.33
15	216764500		Harness, Electrical, Evaporator		Appelez-nous	-
17	06599546		Spacer-support, Evaporator		Appelez-nous	-
18	216727600		Insulator-evap,styrofoam		Appelez-nous	-
19	216727700		Insulator-evap,styrofoam		Appelez-nous	-
20	5304404743		Thermostat-defrost		Appelez-nous	-
23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 57.55
24	08016580		Bracket		Appelez-nous	-
26	216511900		Spacer-tube		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	216784700		Compressor,w/o Electricals		Appelez-nous	-
30	5304491583		Controller-regulator Lp   (Replaces: 216649300)				$ 99.23
32	216649100		Clamp,elec Cont Mtg ,compressor				$ 12.50
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
41	216524000		Cover-wiring,rear		Appelez-nous	-
45	216389900		Cover-wiring, Rear/top		Appelez-nous	-
52	08013198		Retainer, Spacer Evap		Appelez-nous	-
55	5304464438		Capacitor,run ,50/60 Hz ,220 Vac ,15 Microfarad   (Replaces: 218909901)			Immediately	$ 35.38
64	216578800		Vent				$ 47.83
65	5309950074		Valve,breather ,door Base				$ 12.48
86	216036600		Screw		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
130	216730400		Support, Evaporator Mtg		Appelez-nous	-
	09950610		Clip		Appelez-nous	-
	216007500		Support-drain Pan		Appelez-nous	-
15A	216424200		Heat Exchanger		Appelez-nous	-
43A	5303212614		Clip,harness Mount				$ 2.88
