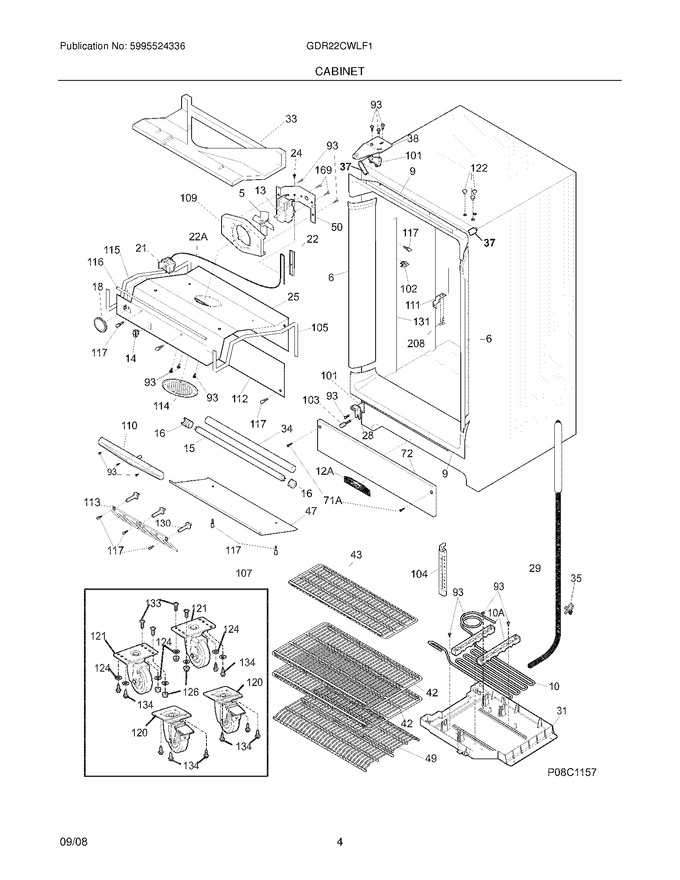

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	297200900		Breaker Kit W/corners			Immediately	$ 70.85
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 59.28
14	216660000		Switch, Rocker				$ 57.96
15	216659500		Bulb-light,40w,130v				$ 157.08
16	216659900		Socket-light/lamp				$ 32.50
18	216591506		Knob,temp Control   (Replaces: 216591500)				$ 29.06
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw,type A ,10-24 X 3/8		Appelez-nous	-
25	216659100		Cover-evaporator		Appelez-nous	-
28	216658900		Hinge-bottom				$ 48.10
29	216361901		Hose-drain				$ 93.14
31	297165801		Pan-drain				$ 67.46
33	216680900		Duct-air		Appelez-nous	-
34	216659400		Shield-light				$ 62.53
35	216273000		Clip, Drain Hose				$ 22.42
37	5303918606		Trim-cabinet Corner,white ,(2)   (Replaces: 241611301)				$ 7.09
38	297211200		Hinge-upper				$ 73.71
42	216681902		Shelf,white ,(2)		Appelez-nous	-
43	216682002		Shelf,white		Appelez-nous	-
47	216680600		Deflector-air		Appelez-nous	-
49	216681800		Trivet		Appelez-nous	-
50	08013207		Bracket Fan Motor				$ 12.92
72	216330500		Grille/kickplate		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
101	216335700		Plate-hinge, Tapping		Appelez-nous	-
102	297121900		Support Shelf			Immediately	$ 12.13
103	216336301		Standoff-base Panel		Appelez-nous	-
104	216360600		Thermometer		Appelez-nous	-
105	216361100		Gasket-cover Evap, Rh		Appelez-nous	-
107	297085805		Castor Kit				$ 307.02
109	297014200		Venturi,blower				$ 56.44
110	216377000		Pan-drain, Condensate				$ 222.14
111	297141400		Bracket-evap Cover		Appelez-nous	-
112	216381300		Cover-drain,condensate				$ 134.09
113	216383600		Grate-air Intake		Appelez-nous	-
114	297014400		Cover-blower				$ 58.59
115	216383700		Gasket-evap Cover, Lh		Appelez-nous	-
116	216383800		Gasket-evap Cover, Front		Appelez-nous	-
117	216605500		Thumbscrew				$ 13.39
120	297206600		Caster-front,(2)				$ 72.66
121	297206500		Caster-rear,(2)				$ 73.40
122	216429601		Plug,white		Appelez-nous	-
124	216658501		Washer,(4)		Appelez-nous	-
126	216658601		Nut,lock ,5/16 Unc-3b				$ 9.19
130	216486800		Support,evaporator Mtg		Appelez-nous	-
131	297122000		Shelf-standard				$ 61.05
133	216658400		Bolt,caster ,5/16 Sq. Neck ,front		Appelez-nous	-
134	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
208	216504500		Screw, Ab, 8-18 X .500		Appelez-nous	-
10A	297177400		Bracket,(2) ,drain Pan		Appelez-nous	-
12A	216734600		Nameplate		Appelez-nous	-
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
71A	216395801		Screw,1/4 20 X 1/2		Appelez-nous	-
F10	297175600		Heater-drain Pan		Appelez-nous	-
F107	297086605		Castor,hardware Kit		Appelez-nous	-
F107	297211400		Installation Instructions,casters		Appelez-nous	-
F111	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
F13	297309000		Motor,fan ,115 V   (Replaces: 216914200)			Immediately	$ 55.32
F21	5304495001		Control-temperature   (Replaces: 216660600)			Immediately	$ 95.54
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	216683600		Plug-hole,hinge Pin		Appelez-nous	-
NI	297001708		Insulation,drain Tube ,36``				$ 13.28
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	297069500		Harness,electrical ,evaporator				$ 155.24
NI	5303311565		Clip-cable				$ 2.10
NI	297173500		Ballast,fl Lamp				$ 155.61
