SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

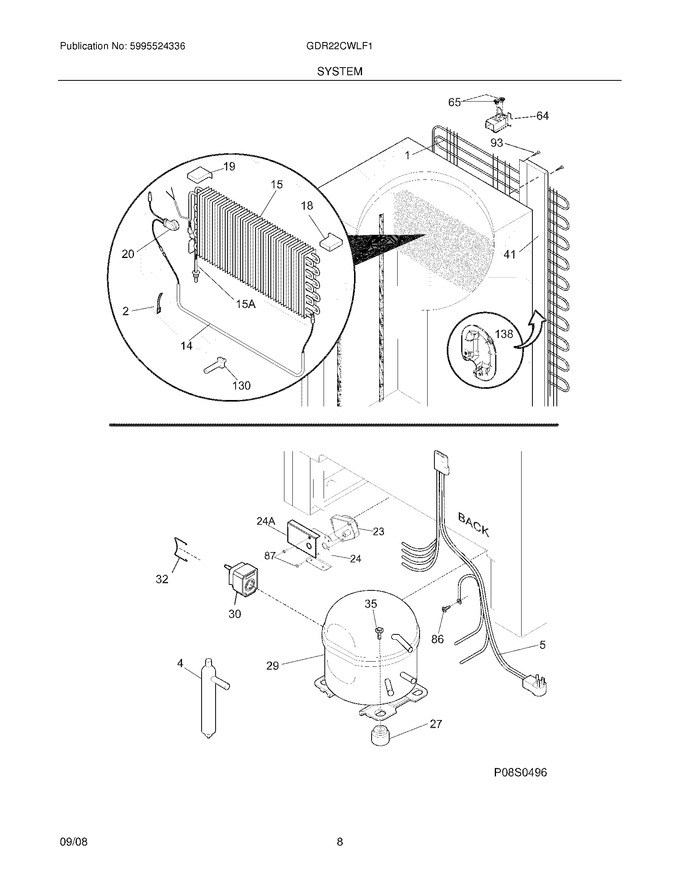

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
14	216730700		Heater-defrost			Immediately	$ 116.44
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	216731001		Thermostat, Defrost			Immediately	$ 81.75
24	216968501		Bracket-timer				$ 74.70
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	297051002		Controller				$ 50.77
32	297051100		Clamp,elec Cont Mtg ,compressor		Appelez-nous	-
35	297177200		Bolt,compressor		Appelez-nous	-
41	297070700		Cover-wiring,rear		Appelez-nous	-
64	216578800		Vent				$ 47.83
65	5309950074		Valve, Breather				$ 12.48
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
87	5304463290		Screw,hi-lo Blunt ,no.8-18x1/2		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
130	297244700		Support,evaporator Mtg				$ 4.26
138	297070800		Cover-drain Hose				$ 8.24
15A	297219300		Heat Exchanger		Appelez-nous	-
24A	297207900		Guard,timer				$ 5.72
F1	5300083897		Condenser				$ 538.37
F15	297311300		Evaporator   (Replaces: 297052900)				$ 201.73
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 57.55
F29	297068205		Compressor,w/o Electricals		Appelez-nous	-
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	297171100		Harness-electrical		Appelez-nous	-
FNI	297366805		Cord-power,flat   (Replaces: 297169900)				$ 68.68
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
NI	297082300		Harness-jumper		Appelez-nous	-
NI	297102800		Spacer-tube		Appelez-nous	-
NI	297111000		Standoff		Appelez-nous	-
NI	297315800		Clip   (Replaces: 297048400)				$ 10.13
NI	216225700		Grommet-spacer				$ 7.77

    View Diagram in Separate Window       Print Part List
