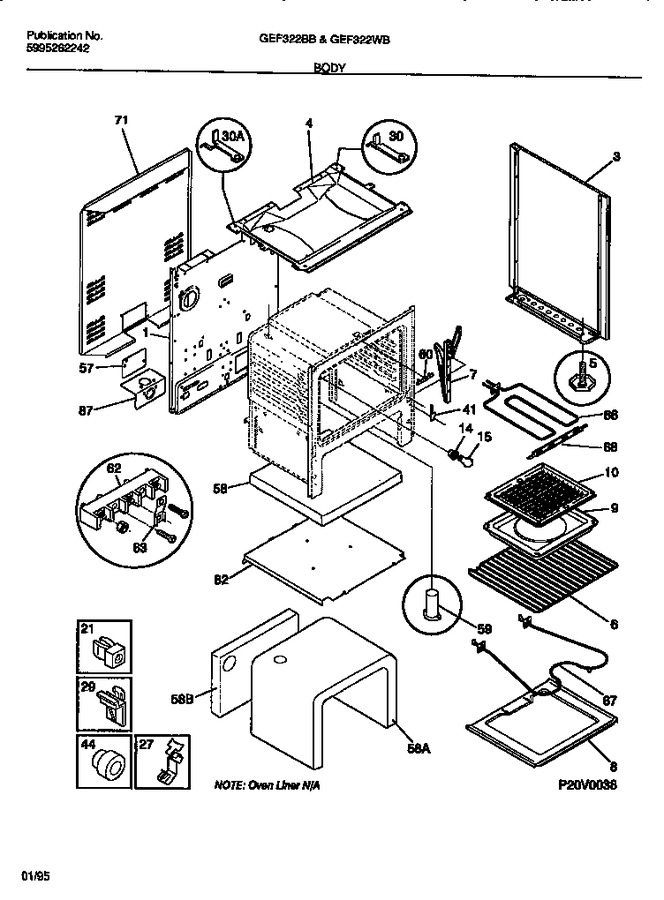

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316029410 | Back-main |
|
- | |||||
| 3 | 316081005 | Panel, Bodyside, White, Lh (non-illustrated) |
|
- | |||||
| 3 | 316081004 | Panel, Bodyside, White, Rh |
|
- | |||||
| 4 | 5303271756 | Burner Box |
|
- | |||||
| 5 | 5303288460 | Nut, T-type, Leveling Screw (non-illustrated) |
|
$ 27.14 | |||||
| 5 | 3934058 | Anti-tip Kit (non-illustrated) |
|
$ 98.75 | |||||
| 5 | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 5 | 316116000 | Screw-anti-tip, (4) (non-illustrated) (Replaces: 316078600) |
|
$ 12.89 | |||||
| 6 | 5304531722 | Rack-oven (Replaces: 316067901) |
|
Immediately | $ 51.05 | ||||
| 7 | 316007001 | Hinge,oven Door ,(2) |
|
$ 234.55 | |||||
| 8 | 3203540 | Panel-oven Bottom |
|
- | |||||
| 9 | 316073800 | Pan-broiler |
|
- | |||||
| 10 | 316073900 | Insert-broiler Pan |
|
- | |||||
| 14 | 3014073 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 40A15 | Light Bulb/lamp (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 21 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 29 | 3051162 | Glide-drawer, Front |
|
Immediately | $ 8.22 | ||||
| 30 | 5303283574 | Bracket-hinge, Main Top Rh |
|
- | |||||
| 41 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 57 | 3203405 | Cover-access |
|
- | |||||
| 58 | 3200847 | Insulation, Oven Bottom |
|
- | |||||
| 59 | 316073601 | Tube, Oven Vent |
|
- | |||||
| 60 | 5303015372 | Cover-oven Front |
|
- | |||||
| 62 | 5303935061 | Terminal Block |
|
- | |||||
| 63 | 5303212739 | Plate-ground Strap |
|
- | |||||
| 66 | 5303051140 | Element-broil |
|
$ 202.71 | |||||
| 67 | 316075100 | Element, Bake |
|
- | |||||
| 68 | 3051373 | Support-element |
|
- | |||||
| 71 | 316015803 | Shield, Rear Wall, Rear Wall |
|
- | |||||
| 82 | 3200825 | Shield, Oven Bottom |
|
- | |||||
| 87 | 5303206618 | Bracket-cable Mtg |
|
- | |||||
| *56642 | 3203550 | Plug-button |
|
Immediately | $ 15.22 | ||||
| *56643 | 5303051099 | Nut, Hex, 10-32 |
|
- | |||||
| *56645 | 5303321319 | Touch-up Paint-white (Replaces: 5303305324) |
|
Immediately | $ 13.46 | ||||
| 30A | 5303283575 | Bracket-hinge, Main Top, Lh |
|
- | |||||
| 58A | 3017142 | Insulation, Oven Wrapper |
|
$ 193.50 | |||||
| 58B | 3203541 | Insulation, Oven Back |
|
- |
