SELECT A DIAGRAM

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

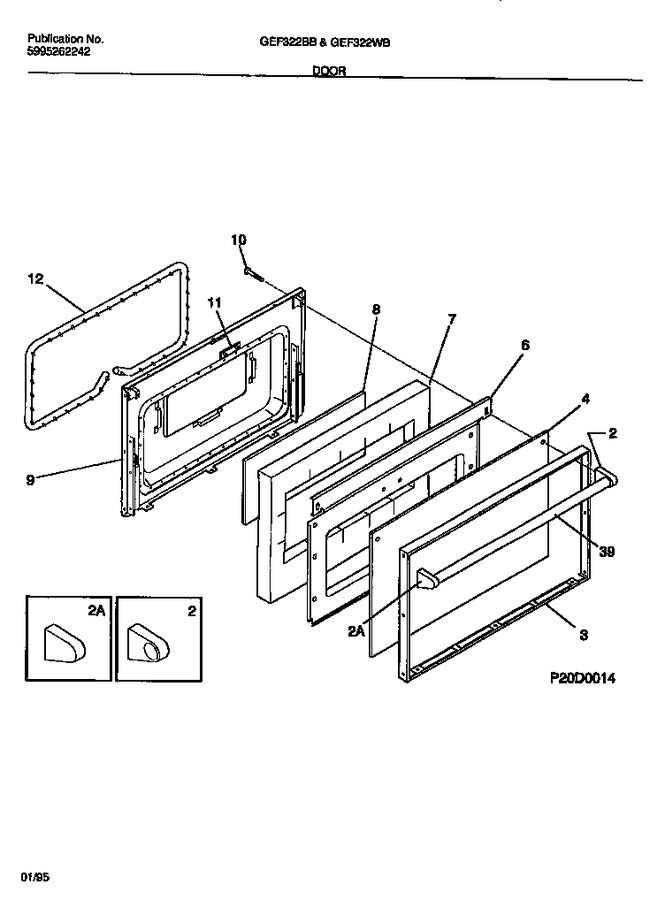

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
5	3051149		Glass, Oven Door, Front		Appelez-nous	-
6	5303210608		Shield-insulation, Black		Appelez-nous	-
7	5303210607		Insulation, Oven Door		Appelez-nous	-
8	316050303		Glass-oven Door, Inner		Appelez-nous	-
9	316066603		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
11	5303015373		Cover-door Liner		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
13	3017081		Panel, Oven Door, White		Appelez-nous	-
22	5303272476		Retainer,glass ,(2) ,angle		Appelez-nous	-
39	5303131256		Handle-door, Oven		Appelez-nous	-
*56650	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*56651	3051305		Spacer, Handle, (2)		Appelez-nous	-
*56652	316071600		Plate Warning/caution		Appelez-nous	-
2A	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
