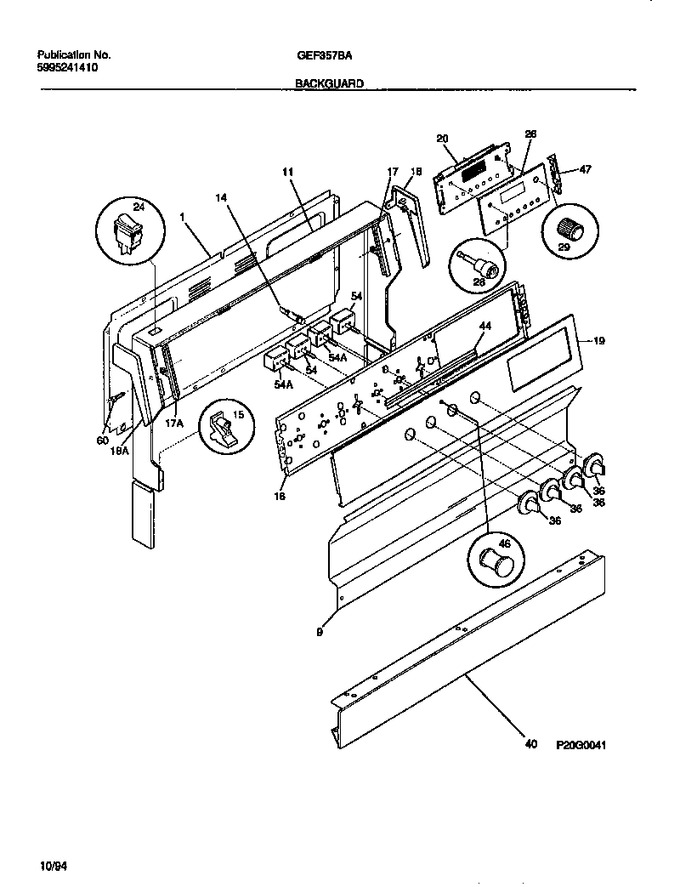

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	5303209333		Trim-splasher, Aluminum		Appelez-nous	-
11	3204764		Trim-wrapper		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	5303212662		Plate, Instrument Mtg		Appelez-nous	-
17	3204754		Trim-glass Retainer,rh		Appelez-nous	-
18	3204747		End Cap, Rh		Appelez-nous	-
19	316034530		Panel-control, Metal		Appelez-nous	-
20	5303271427		Clock/timer, Eoc		Appelez-nous	-
24	5303208662		Switch-oven Light, Rocker		Appelez-nous	-
26	316049501		Glass-eoc		Appelez-nous	-
28	3204586		Button-clock, Black		Appelez-nous	-
29	3204590		Knob-eoc Control, Black		Appelez-nous	-
36	5303212659		Knob-control, Infinite Sw		Appelez-nous	-
40	5303212672		Panel-manifold		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
46	5308037703		Lens-light/lamp, Indicator, Amber		Appelez-nous	-
47	3204868		Retainer, Eoc Glass		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 5303285142)			Immediately	$ 51.95
60	5303293427		Screw, 6, 20 X 1/2, 5 Oval Head		Appelez-nous	-
*84720	5303272555		Clip-backguard		Appelez-nous	-
*84721	3051224		Retainer-lens		Appelez-nous	-
*84722	3204745		Bushing-ctrl Shaft		Appelez-nous	-
*84723	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*84724	5303291062		Harness-wiring, Backguard		Appelez-nous	-
17A	3204753		Trim-glass Retainer,lh		Appelez-nous	-
18A	3204746		End Cap, Lh		Appelez-nous	-
54A	5303285143		Switch, 8`` Element		Appelez-nous	-
