SELECT A DIAGRAM

02 - Backguard


03 - Body

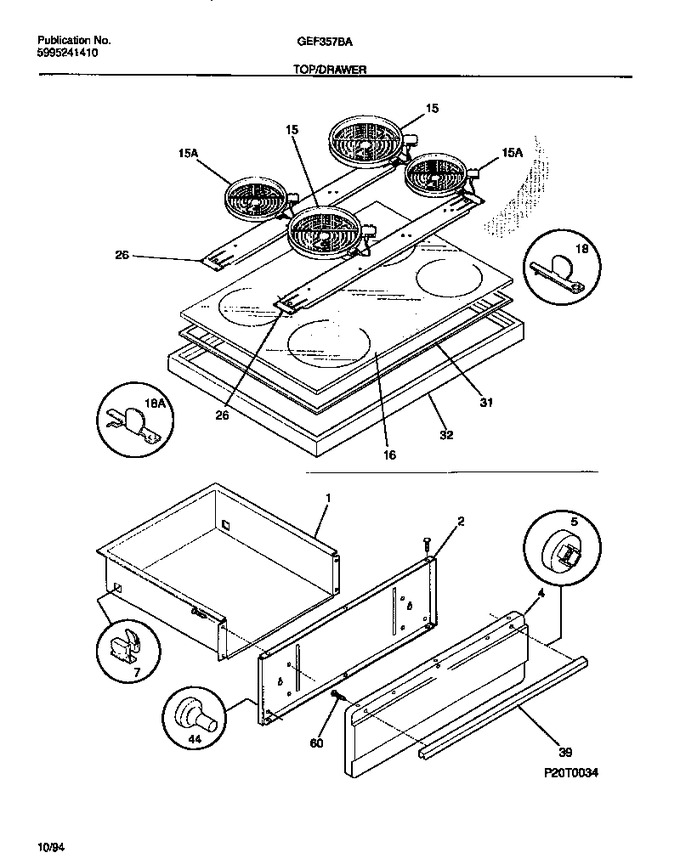

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	3131324		Panel-drawer (black)		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	3204915		Element-surface, Coil, Large/8 Inch, W/limit Switch		Appelez-nous	-
16	316035800		Main Top-glass, Black		Appelez-nous	-
18	5303291056		Bracket-hinge, Main Top, Rh		Appelez-nous	-
26	5303271632		Channel, Surface Unit Mt		Appelez-nous	-
31	316045900		Seal-glass Top		Appelez-nous	-
32	5303271631		Trim Frame, Glass Top		Appelez-nous	-
39	316019504		Handle-drawer, Black		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303281651		Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2		Appelez-nous	-
*84728	316001705		Harness-top Elements		Appelez-nous	-
*84729	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*84730	5309951550		Cleaner-cooktop		Appelez-nous	-
15A	3204913		Element-surface, Coil, Small/6 Inch, W/limit Switch		Appelez-nous	-
15B	5303305635		Limiter Switch, Large/8 Inch (non-illustrated)		Appelez-nous	-
15C	5303305636		Limiter Switch, Small/6 Inch (non-illustrated)		Appelez-nous	-
18A	5303291055		Bracket-hinge, Main Top, Lh		Appelez-nous	-
18B	5303288567		Screw, 8-18 X 3/8, (4) (non-illustrated)		Appelez-nous	-
4A	08067785		Screw, Hex Washer Head, 8-18(a) X 1/2 (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
