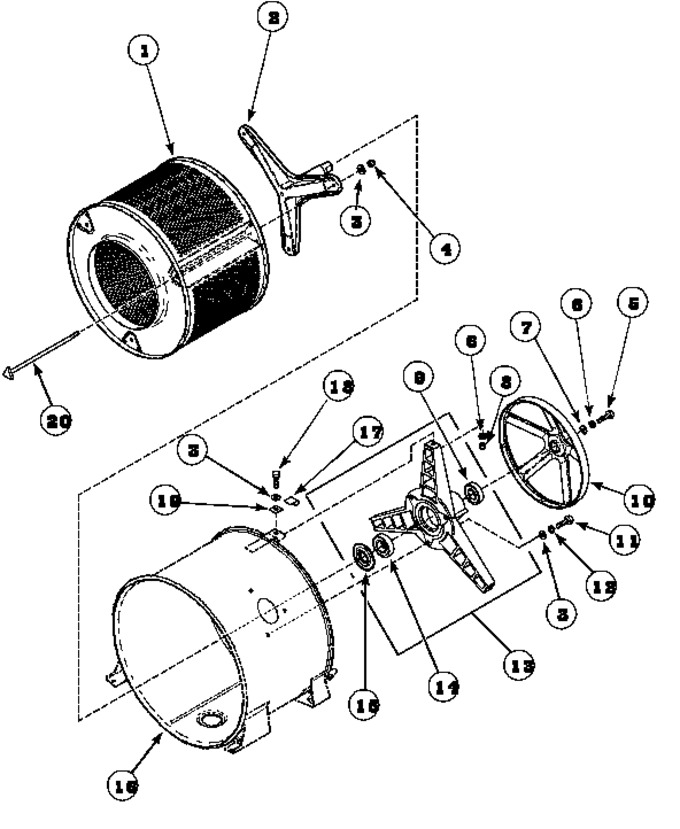

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	685005		Inner Basket		Appelez-nous	-
2	Y685212		Assy,trunion		Appelez-nous	-
3	685812		Washer,flat 3/8 Thick		Appelez-nous	-
4	685844		Locknut,3/8-16unc Ss304-nylon		Appelez-nous	-
5	685831		Screw,3/8-24unfx1 Lh Nylon				$ 6.95
6	685850		Lockwasher,3/8 Ext Type Ss304		Appelez-nous	-
7	685813		Washer,flat .406x1.5		Appelez-nous	-
8	685845		Locknut,3/8-16 Unc Black Oxide		Appelez-nous	-
9	Y685602		Bearing,ball-rear		Appelez-nous	-
10	Y685612		Pulley, Cast & Machine		Appelez-nous	-
11	685809		Screw,hhc 3/8-16unc		Appelez-nous	-
12	M400014		Lockwasher		Appelez-nous	-
13	685001		Assy,bearing Housing		Appelez-nous	-
14	685601		Bearing,ball-front		Appelez-nous	-
15	685603		Seal,radial Lip		Appelez-nous	-
16	685002		Assy, Outer Tub		Appelez-nous	-
17	36985		Clip, Hose		Appelez-nous	-
18	685848		Washer,flat .344x.875x.063 Ss		Appelez-nous	-
19	00685139		Plate,hose Mount   (Replaces: 685139)				$ 102.64
20	685216		Assy,tension Rod		Appelez-nous	-
