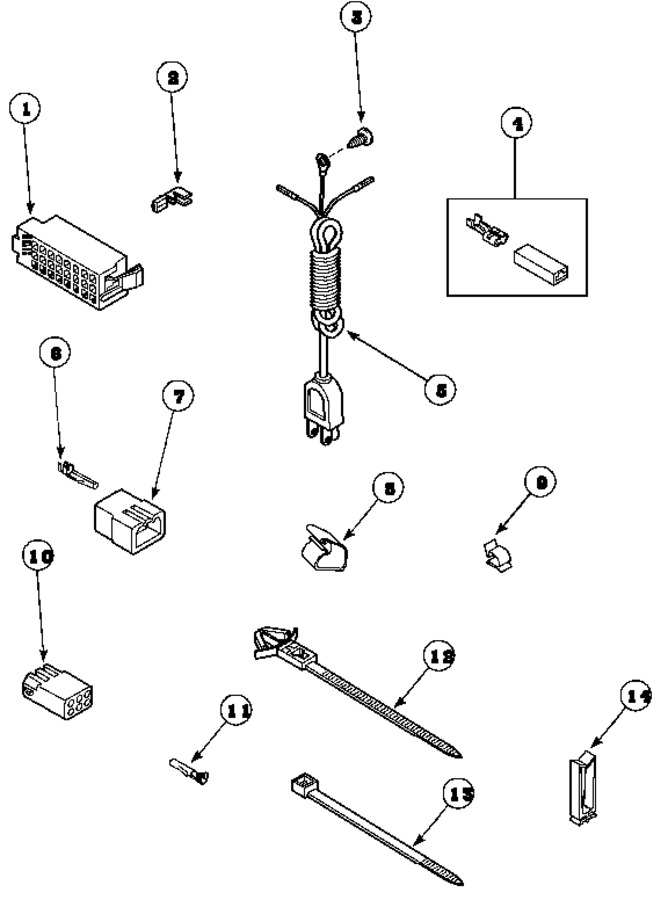

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34123		Housing,lh -24 Position		Appelez-nous	-
1	32746		Housing,r.h.-24 Positi		Appelez-nous	-
2	Y00188		Terminal,female-molex-		Appelez-nous	-
3	Sub. To D513139P		Screw,10b-16 X 1/2 Hex   (Replaces: 52909)		Appelez-nous	-
4	00234		Terminal,insulated		Appelez-nous	-
5	Y34458		Power Cord All		Appelez-nous	-
6	Y00116		Terminal,pin-male		Appelez-nous	-
7	23033		Plug,9 Circuit		Appelez-nous	-
7	26302		Plug,1 Circuit		Appelez-nous	-
7	23041		Plug,6 Circuit		Appelez-nous	-
8	35521		Clip,harness Holder				$ 104.07
9	21036		Clip,cable				$ 62.49
10	26708		Receptacle,6 Circuit		Appelez-nous	-
10	26163		Receptacle,9 Circuit		Appelez-nous	-
10	26301		Receptacle,molex				$ 78.98
11	Y00117		Female Socket Terminal		Appelez-nous	-
12	38663		Tie, Wire-push Mount		Appelez-nous	-
13	COMM PART		Wire Tie   (Replaces: 55881)		Appelez-nous	-
14	36274		Clip, Harness		Appelez-nous	-
NI	685526		Harness,wiring-base		Appelez-nous	-
NI	685515		Harness,wiring-motor		Appelez-nous	-
NI	Y685525		Harness,wiring-hood		Appelez-nous	-
