Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5308007974 Pressure Regulator Special Order $ 309.02

2 3017992 Manifold Pipe Appelez-nous -
3 5303131057 Valve Top (4) Appelez-nous -
4 5308013927 Thermostat Appelez-nous -
5 08007974 Pressure Regulator Appelez-nous -
6 5303131061 Baffle - Burner Appelez-nous -
7 5308013855 Burner-oven Appelez-nous -
8 5303131063 Tube - Oven Feed Appelez-nous -
9 5303131064 Loxit-nut Appelez-nous -
10 5308013942 Valve-safety Appelez-nous -
11 3131069 Support - Oven Valve Appelez-nous -
12 3205598 Pilot-oven Appelez-nous -
13 3131072 Nut & Sleeve Appelez-nous -
14 5303009490 Tube-oven Pilot Appelez-nous -
15 5303131075 Pilot - Top Burner Appelez-nous -
16 3131074 Loxit - Nut Appelez-nous -
17 5303016870 Support-top Burner (2) Appelez-nous -
18 3131078 Strap - Pilot Shield Appelez-nous -
19 5303131079 Burner-top Rear (2) Special Order $ 129.78

20 5303131080 Burner-top Front (2) Special Order $ 76.13

*10370 5300009126 Clip Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

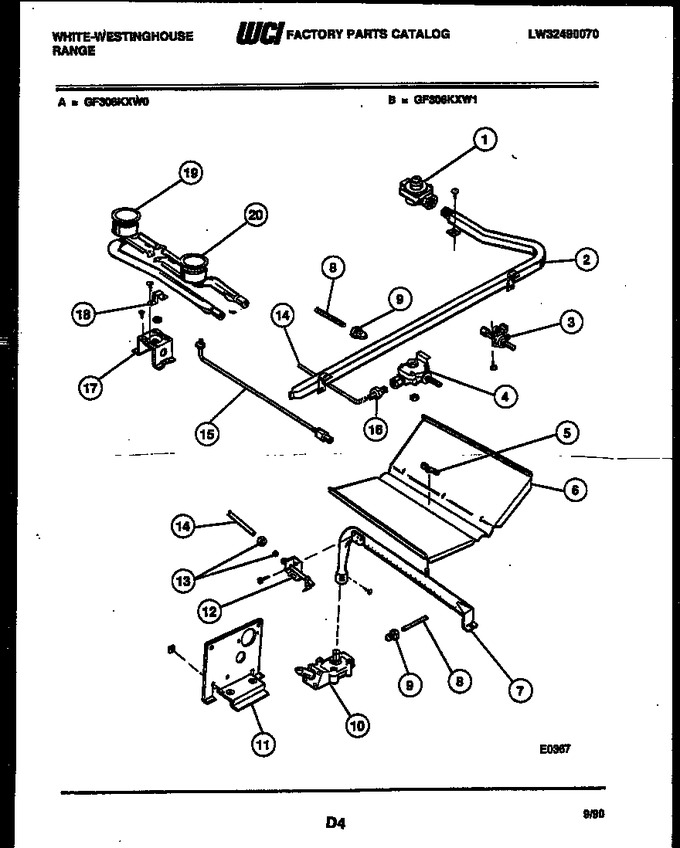

Diagram for GF306KXW1
