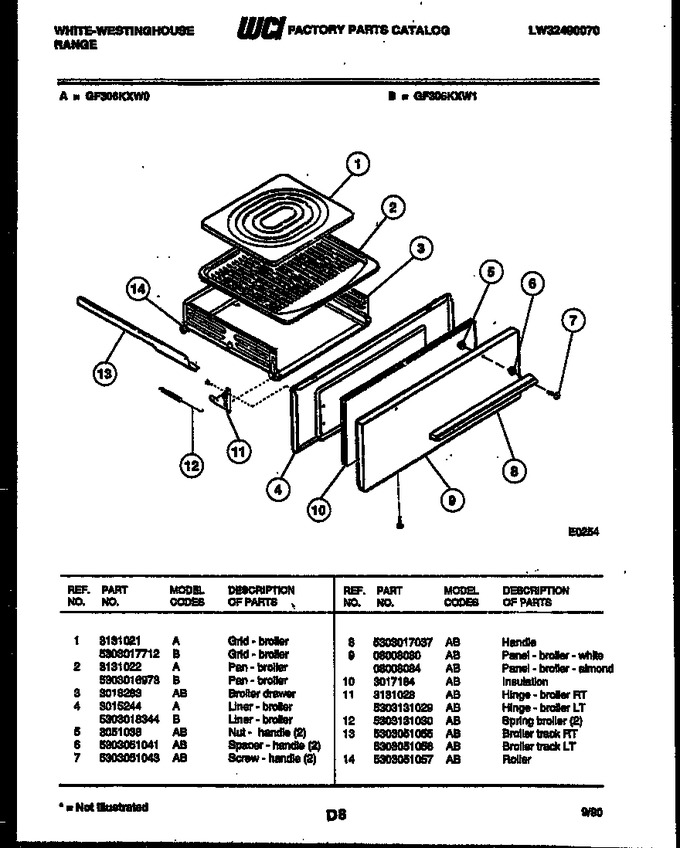

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017712 | Grid-broiler |
|
- | |||||
| 2 | 5303016973 | Pan-broiler |
|
- | |||||
| 3 | 3018283 | Broiler Drawer |
|
- | |||||
| 4 | 5303018344 | Liner - Broiler |
|
- | |||||
| 5 | 3051038 | Nut-handle (2) |
|
- | |||||
| 6 | 5303051041 | Spacer-handle (2) |
|
- | |||||
| 7 | 5303051043 | Screw-handle (2) |
|
- | |||||
| 8 | 5303017037 | Handle |
|
- | |||||
| 9 | 08008080 | Panel-broiler (white) |
|
- | |||||
| 10 | 3017184 | Insulation |
|
- | |||||
| 11 | 3131028 | Hinge Broiler-rt |
|
- | |||||
| 12 | 5303131030 | Spring Broiler (2) |
|
- | |||||
| 13 | 5303051055 | Broiler Track Rt |
|
$ 56.60 | |||||
| 14 | 5303051057 | Roller |
|
- | |||||
| 11A | 5303131029 | Hinge Broiler-lt |
|
- | |||||
| 13A | 5303051056 | Broiler Track Lt |
|
$ 78.44 |
