Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5308007974 Pressure Regulator Special Order $ 309.02

2 5303017725 Manifold Pipe Appelez-nous -
3 3017726 Bar Slide Appelez-nous -
4 5308013926 Thermostat Appelez-nous -
5 5303131061 Baffle-oven Burner Appelez-nous -
6 5303202752 Burner-oven Special Order $ 26.83

7 3131085 Tubing-oven Sply 3/8 Appelez-nous -
8 5308007983 Loxit Nut 3/8 Appelez-nous -
9 5308007985 Terminal Block Appelez-nous -
10 3131088 Cover,safety Valve Appelez-nous -
11 3051101 Bushing - Snap Appelez-nous -
12 3131069 Support Safety Valve Appelez-nous -
13 5308009419 Valve-safety Special Order $ 232.67

14 12400035 Igniter-oven   (Replaces: 5308009420) In-Stock Immediately $ 60.44

15 5308008002 Cam - Top Burner (4) Appelez-nous -
16 5303131057 Valve-top Burner Appelez-nous -
17 5303131094 Switch - Micro Appelez-nous -
18 5303131096 Spring - Slide Bar Appelez-nous -
19 3016870 Support - Top Burner Appelez-nous -
20 3015196 Ignitor 36`` Appelez-nous -
21 5303131079 Top Burner-rear Special Order $ 129.78

22 5303131080 Top Burner-front Special Order $ 76.13

23 5303131099 Valve-shut Off Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

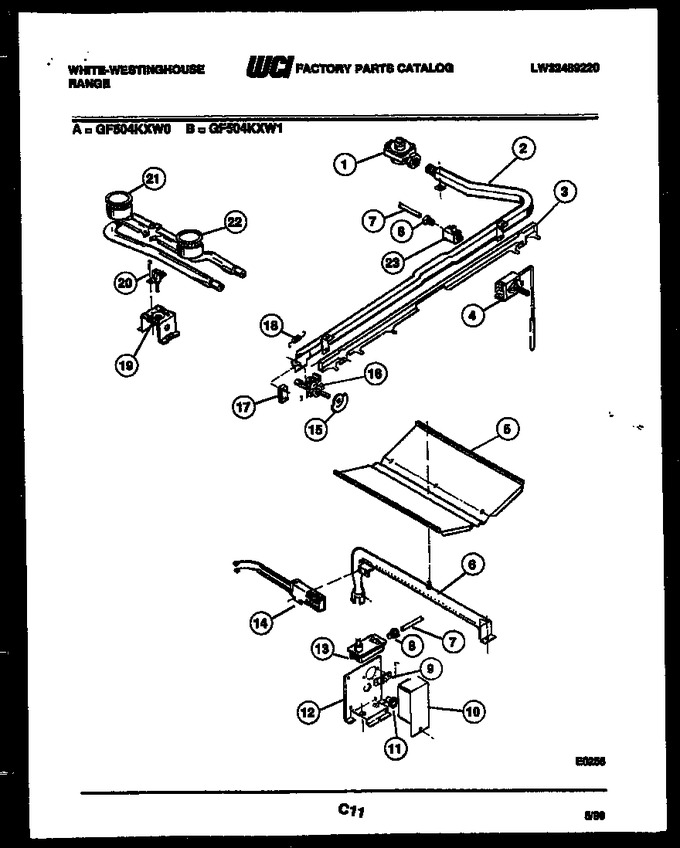

Diagram for GF504KXD1
