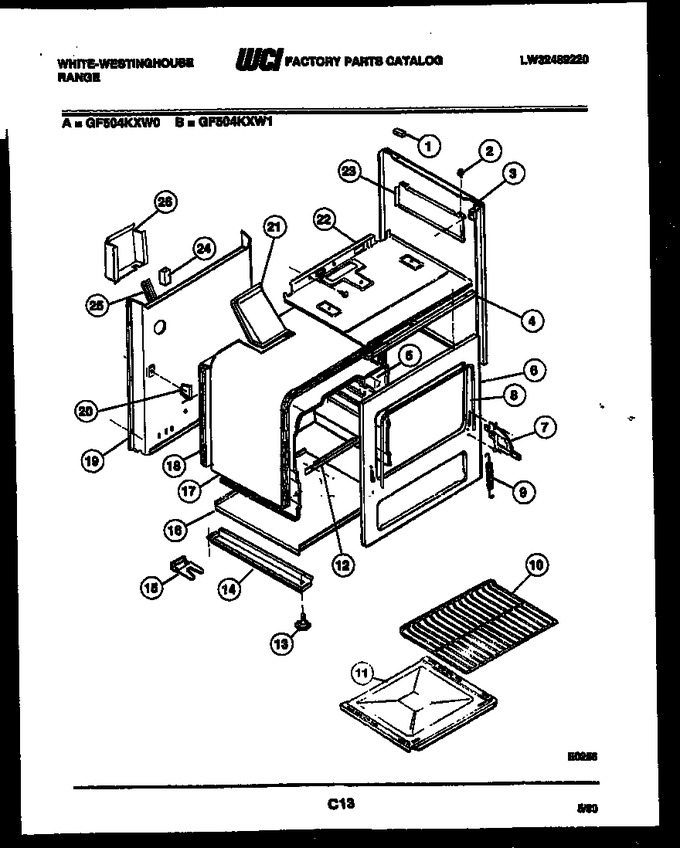

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303016129		Grommet Main Top		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	5303051061		Bodyside L & R White		Appelez-nous	-
3	5308014019		Bodyside L & R Almond		Appelez-nous	-
4	3016950		Support-control Pnl		Appelez-nous	-
5	3131032		Oven Liner Rh		Appelez-nous	-
6	3016942		Front Frame		Appelez-nous	-
7	5303204672		Hinge-door Lh		Appelez-nous	-
8	5308013916		Seal-oven Door		Appelez-nous	-
9	5303051079		Spring-hinge L&r (2)		Appelez-nous	-
10	5303016128		Rack-oven (2)		Appelez-nous	-
11	3017447		Oven Bottom		Appelez-nous	-
12	3131038		Support-oven Btm		Appelez-nous	-
13	5303051080		Leveling Leg		Appelez-nous	-
14	5308068047		Rail-base L & R (2)		Appelez-nous	-
15	3131041		Bracket-installation		Appelez-nous	-
16	3017448		Main Bottom		Appelez-nous	-
17	3017171		Insul (wrap)		Appelez-nous	-
18	3017172		Insul Back & Top		Appelez-nous	-
19	A005085000		Back-main		Appelez-nous	-
20	3051096		Support,oven Rear		Appelez-nous	-
21	3017173		Vent Box		Appelez-nous	-
22	3017450		Burner Box		Appelez-nous	-
23	5303131053		Shield-heat B/b Rh		Appelez-nous	-
24	3015197		Spark - Module		Appelez-nous	-
25	3131046		Channel Main Back		Appelez-nous	-
26	3131047		Cover-spark Module		Appelez-nous	-
23A	5303131054		Shield-heat B/b Lh		Appelez-nous	-
23B	3131791		Clip B/s Corner (non-illustrated)				$ 19.01
25A	5303015249		Main-cord (non-illustrated)		Appelez-nous	-
5A	3131033		Oven Liner Lh		Appelez-nous	-
5B	3017445		Oven Liner Top		Appelez-nous	-
5C	3017446		Oven Liner Back		Appelez-nous	-
7A	5303204670		Hinge-door Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
