SELECT A DIAGRAM

02 - Backguard


03 - Burner, Manifold And Gas Control


04 - Body Parts


05 - Door Parts


06 - Drawer And Cooktop Parts

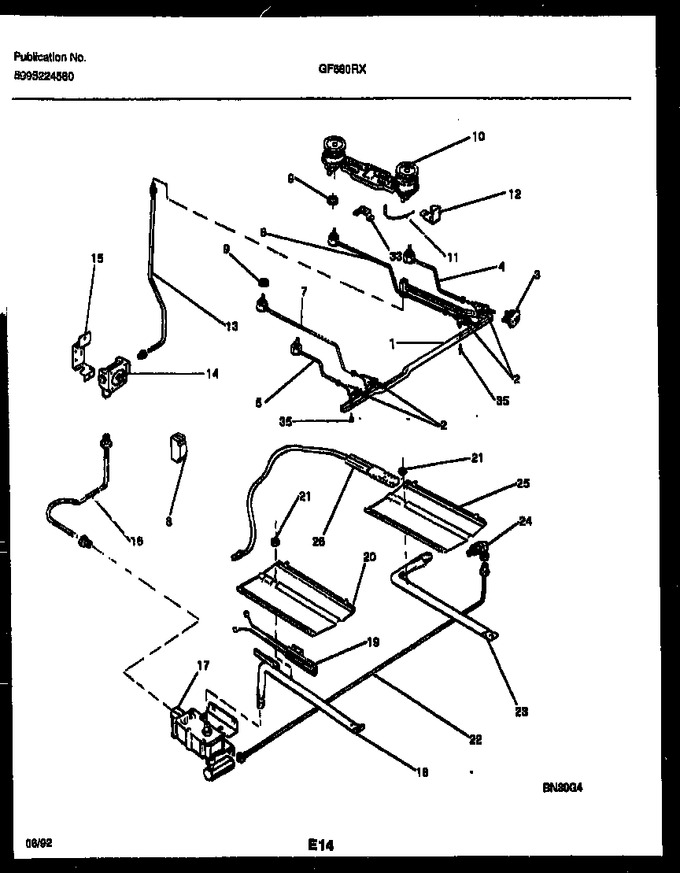

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3203082		Back-main		Appelez-nous	-
1	5303271375		Manifold Pipe		Appelez-nous	-
2	316031900		Valve, Top, 2 Pos, (4)		Appelez-nous	-
2	3203010		Clip, Hinge, (3)   (Replaces: 5303012323)				$ 14.89
2	3131314		Shield-oven-top		Appelez-nous	-
3	5303269543		Panel-bodyside Rh (almond)		Appelez-nous	-
3	316032001		Switch-igniter, (4)				$ 69.35
4	5303283665		Tube-burner, Rf		Appelez-nous	-
4	3011597		Box-burner		Appelez-nous	-
5	5303203397		Screw-leveling				$ 14.49
5	5303283666		Tube-burner, Lf		Appelez-nous	-
6	5303283667		Tube-burner, Rr		Appelez-nous	-
7	5303283668		Tube-burner, Lr		Appelez-nous	-
8	5303200669		Spark Module		Appelez-nous	-
8	5303212540		Panel-oven Bottom		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
9	3013279		Nut, Special, 4				$ 2.34
10	5303131147		Burner-top, Double, (4)		Appelez-nous	-
11	5303131289		Bracket-light Switch		Appelez-nous	-
11	3200276		Igniter-top Burner, Base, (2)		Appelez-nous	-
12	5303202622		Switch, Door		Appelez-nous	-
12	3016993		Retainer-igniter		Appelez-nous	-
13	5303269501		Rod-light Switch		Appelez-nous	-
13	5303208495		Tube, Aluminum, Rgltr To Manf, With Fittings		Appelez-nous	-
14	3014073		Socket-light/lamp, Oven		Appelez-nous	-
14	5303280582		Control-regulator		Appelez-nous	-
15	08067934		Bracket-regulator		Appelez-nous	-
15	40A15		Lamp-oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
16	5303208494		Tube-valve To Rgltr		Appelez-nous	-
17	3204585		Retainer-glass		Appelez-nous	-
17	5303208499		Valve-safety-dual			Immediately	$ 559.67
18	3131290		Burner-oven		Appelez-nous	-
19	5303935066		Igniter-oven   (Replaces: 5303131300)			Immediately	$ 59.58
19	5303131357		Handle-latch				$ 37.33
20	3131284		Baffle-oven Burner				$ 155.77
20	3203218		Knob-latch		Appelez-nous	-
21	3014099		Spacer,bodyside				$ 3.62
21	154079601		Nut, (2)   (Replaces: 5303013272)				$ 0.41
22	5303269499		Switch Latching				$ 20.53
22	5303208493		Tube-valve To Mixer		Appelez-nous	-
23	08067776		Fastener-push-on		Appelez-nous	-
23	08067935		Burner-broiler				$ 142.59
24	3051413		Shield-bi Metal Latch		Appelez-nous	-
24	5303208640		Mixer Elbow		Appelez-nous	-
25	5303210379		Baffle-broiler				$ 175.88
25	3131313		Shield-heat, Lower Utility		Appelez-nous	-
26	5303935068		Ignitor-broiler   (Replaces: 5308067970)				$ 166.55
26	08067757		Cover Plate		Appelez-nous	-
27	5303284616		Clip-thermo Bulb				$ 9.86
33	3200277		Bracket Burner Mtg		Appelez-nous	-
35	5303269845		Screw-burner Mtg, Hex Washer Head, 1/4-20 X 0.31, W/ Gas		Appelez-nous	-
18A	3131593		Shield, Bimetal Latch (non-illustrated)		Appelez-nous	-
20A	08013188		Screw, Set, 10-24 X 3/16, Latch Knob		Appelez-nous	-
22A	08067978		Stud-spacer (non-illustrated)		Appelez-nous	-
3A	5303269545		Panel Bodyside Lh (almond)		Appelez-nous	-
3C	3200834		Shield-heat, Body Side (non-illustrated)		Appelez-nous	-
3D	3200846		Fastener-edge Mtg (non-illustrated)		Appelez-nous	-
5A	3934056		Bracket, Anti-tip (non-illustrated)		Appelez-nous	-
5B	5303288460		Nut-tee, Leveling Leg (non-illustrated)				$ 27.14
8A	3014226		Support-oven Bottom, (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
