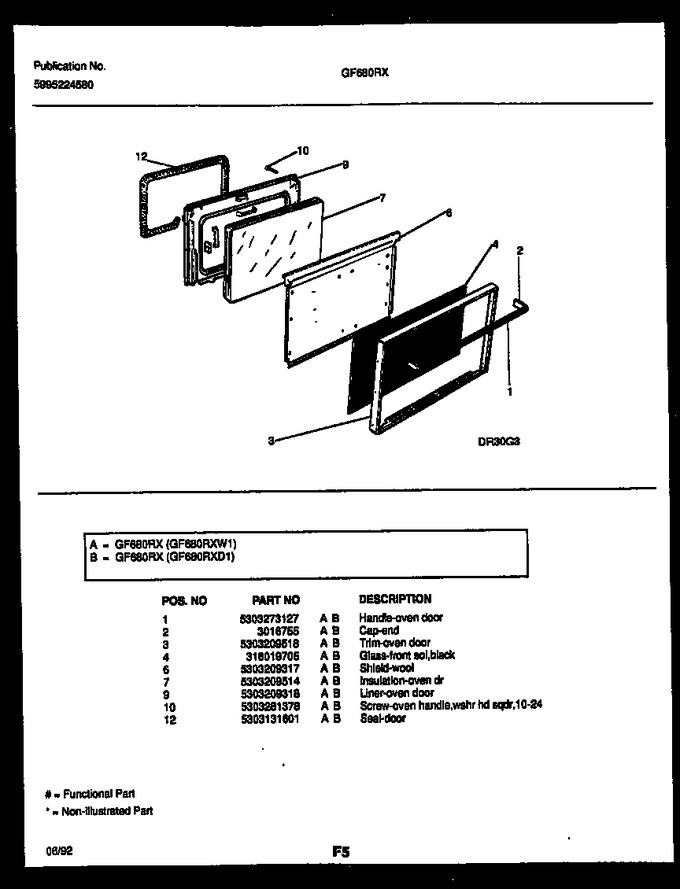

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303273127 | Handle-oven Door |
|
- | |||||
| 2 | 3016755 | Cap, End |
|
- | |||||
| 3 | 5303209518 | Trim-oven Door |
|
- | |||||
| 4 | 316019705 | Glass-front Sol, Black |
|
- | |||||
| 6 | 5303209317 | Shield-wool |
|
- | |||||
| 7 | 5303209514 | Insulation - Oven Dr |
|
- | |||||
| 9 | 5303209318 | Liner-oven Door |
|
- | |||||
| 10 | 5303281378 | Screw-oven Handle, Wshr Hd Sqdr, 10-24 |
|
$ 13.60 | |||||
| 12 | 5303131601 | Seal, Door |
|
$ 374.63 |
