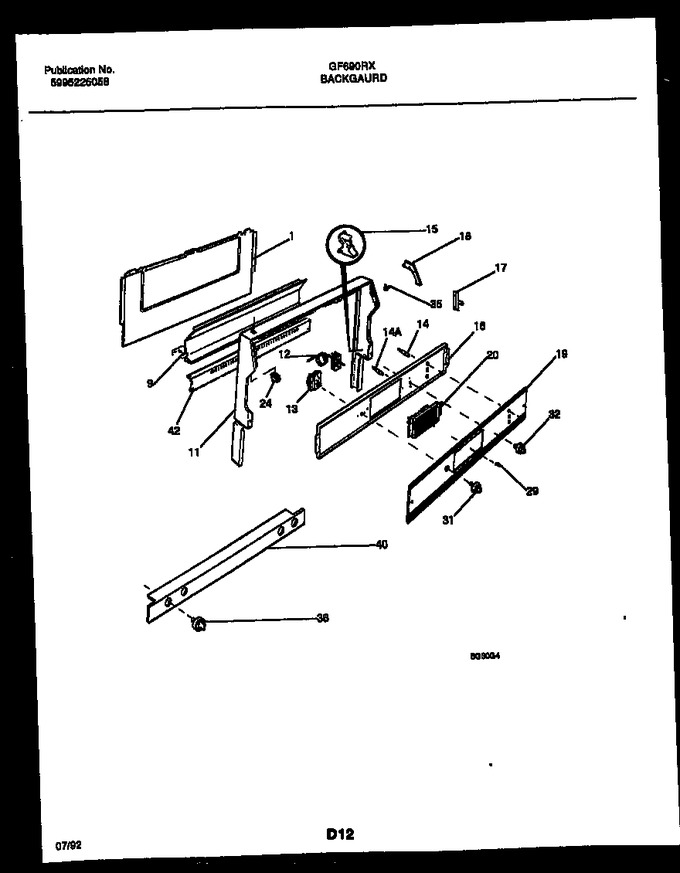

02 - Backguard
03 - Burner, Manifold And Gas Control
04 - Body Parts
06 - Door Parts
07 - Cooktop And Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316028703 | Shield-backguard, Rear Wall |
|
- | |||||
| 9 | 316012501 | Trim-splasher, White |
|
- | |||||
| 11 | 3206432 | Trim-wrapper |
|
- | |||||
| 12 | 5303271746 | Thermostat |
|
$ 414.28 | |||||
| 13 | 5303212678 | Switch Selector |
|
- | |||||
| 14 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 15 | 5303131237 | Support, Backguard |
|
- | |||||
| 16 | 5303274090 | Plate, Instrument Mtg |
|
- | |||||
| 17 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 19 | 5303212754 | Glass-backguard |
|
- | |||||
| 20 | 5303212752 | Clock/timer, Radial 3 Stem |
|
- | |||||
| 24 | 5303208662 | Switch-rocker |
|
- | |||||
| 29 | 5303212756 | Knob-clock |
|
- | |||||
| 31 | 5303212757 | Knob-selector |
|
- | |||||
| 32 | 5303212758 | Knob-thermostat |
|
- | |||||
| 36 | 5303212749 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 5303212750 | Panel-manifold |
|
- | |||||
| 42 | 3131241 | Trim-vent |
|
- | |||||
| *66463 | 5303272555 | Clip-bkgd |
|
- | |||||
| *66463 | 3204745 | Bushing-ctrl Shaft |
|
- | |||||
| 14A | 5303131237 | Light/lamp, Indicator, Red, Lock |
|
- |
