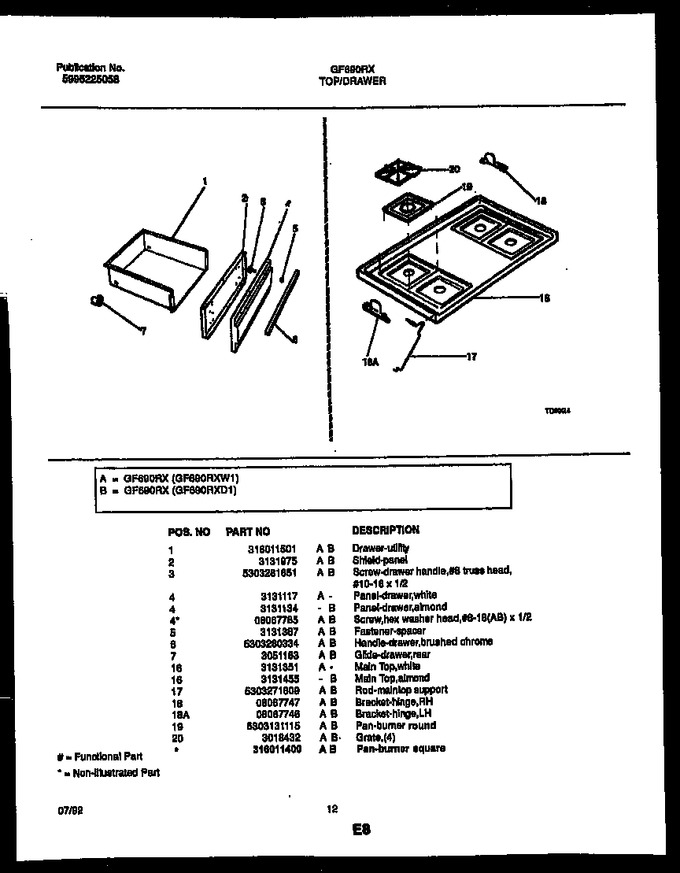

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011501 | Drawer-utility |
|
- | |||||
| 2 | 3131975 | Shield-panel |
|
- | |||||
| 3 | 5303281651 | Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2 |
|
- | |||||
| 4 | 3131117 | Panel-drawer, White |
|
- | |||||
| 5 | 3131387 | Fastener, Spacer |
|
- | |||||
| 6 | 5303280334 | Handle-drawer, Brushed Chrome |
|
- | |||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 16 | 3131351 | Main Top,white |
|
- | |||||
| 17 | 5303271609 | Rod-maintop Support |
|
- | |||||
| 18 | 08067747 | Bracket-hinge Rh |
|
- | |||||
| 19 | 5303131115 | Pan-burner Round |
|
$ 15.62 | |||||
| 20 | 3018432 | Grate (4) |
|
- | |||||
| *66491 | 316011400 | Pan-burner Square |
|
- | |||||
| 18A | 08067746 | Bracket-hinge Lh |
|
- | |||||
| 4A | 08067785 | Screw, Hex Washer Head, 8-18(ab) X 1/2 (non-illustrated) |
|
- |
