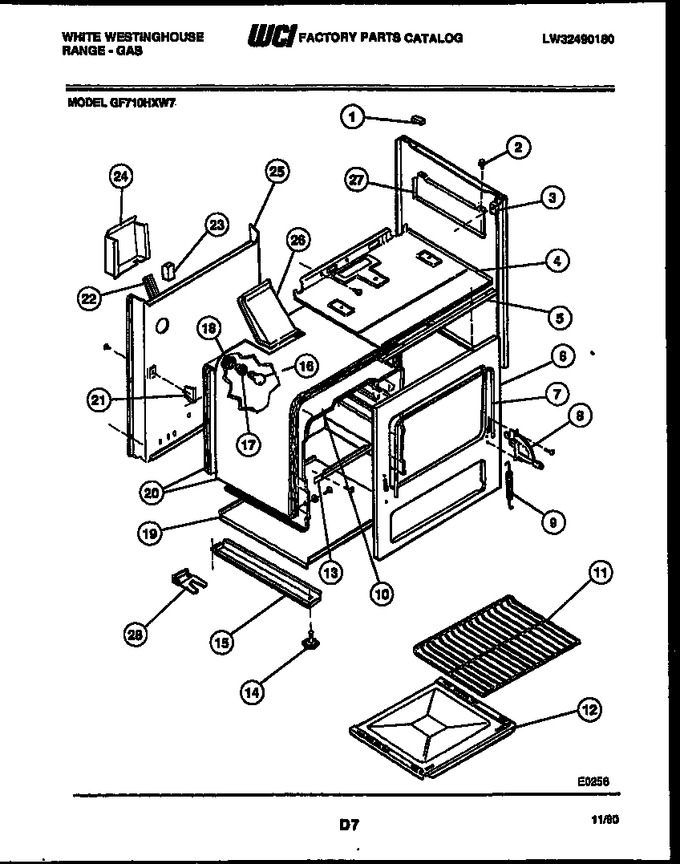

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205587 | Grommet-maintop |
|
- | |||||
| 2 | 3051063 | Grommet Plastic |
|
- | |||||
| 3 | 5308014019 | Bodyside Panel-almond |
|
- | |||||
| 4 | 3017174 | Bottom Burner Box |
|
- | |||||
| 5 | 3131811 | Support-control Panel |
|
- | |||||
| 6 | 3205578 | Front - Frame |
|
- | |||||
| 7 | 5308008022 | Seal,oven Door |
|
$ 124.89 | |||||
| 8 | 5303204670 | Hinge-oven Door Rh |
|
- | |||||
| 9 | 5308008028 | Spring-oven Door |
|
- | |||||
| 10 | 3018284 | Liner-rt Side |
|
- | |||||
| 11 | 5303015714 | Rack-oven |
|
- | |||||
| 12 | 3018282 | Liner-bottom |
|
- | |||||
| 13 | 3131038 | Support-oven Bottom |
|
- | |||||
| 14 | 318175510 | Screw-leveling Leg (Replaces: 5303210257) |
|
Immediately | $ 24.26 | ||||
| 15 | 5303210256 | Rail Base Lt |
|
- | |||||
| 15 | 5303210255 | Rail Base Rt |
|
- | |||||
| 16 | 40A15 | Bulb, Oven Light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 17 | 5303009410 | Recept-oven Light |
|
- | |||||
| 18 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 19 | 3011645 | Bottom - Main |
|
- | |||||
| 20 | 3017171 | Insulation - Wrap |
|
- | |||||
| 21 | 3051096 | Support,oven Rear |
|
- | |||||
| 22 | 3131046 | Channel - Wire |
|
- | |||||
| 23 | 5303209931 | Spark Module |
|
- | |||||
| 24 | 08013953 | Cover-spark Module |
|
- | |||||
| 25 | 5303013340 | Main Back |
|
- | |||||
| 26 | 3017173 | Vent Box |
|
- | |||||
| 27 | 5303131053 | Shield-burner Box Rt |
|
- | |||||
| 28 | 3934059 | Anti-tip Kit |
|
- | |||||
| *31955 | 5303212856 | Diagram-wire (non-illustrated) |
|
- | |||||
| 10A | 3018285 | Liner-lt Side |
|
- | |||||
| 10B | 3018347 | Liner - Top |
|
- | |||||
| 10C | 3018286 | Liner-back |
|
- | |||||
| 20A | 3017172 | Insulation - Back |
|
- | |||||
| 23A | 313791 | Clip B/s Corner (non-illustrated) |
|
- | |||||
| 27A | 5303131054 | Shield-burner Box Lt |
|
- | |||||
| 8A | 5303204672 | Hinge-oven Door Lh |
|
- |
