View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Burner, Manifold And Gas Control
05 - Body Parts

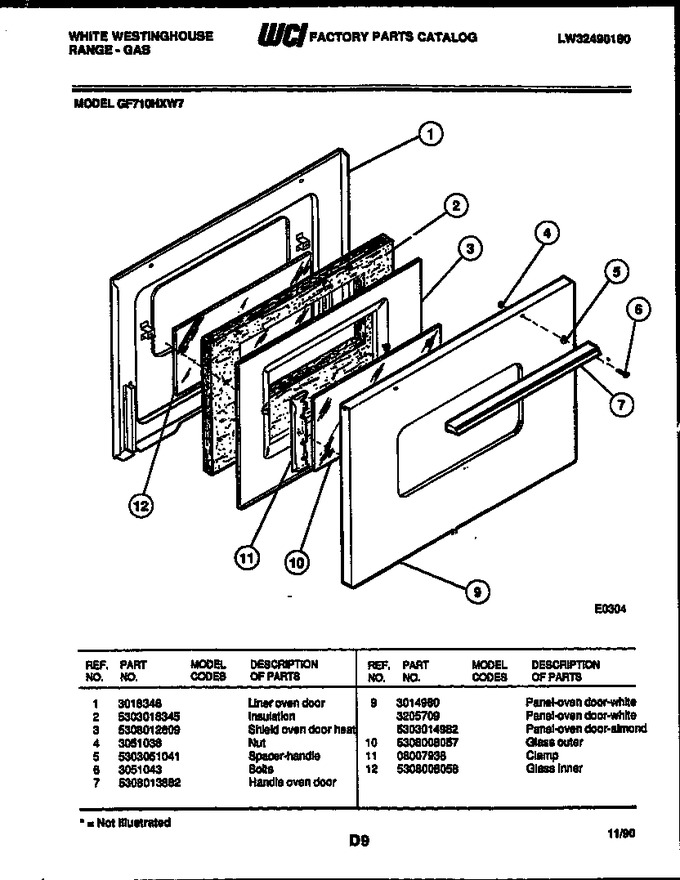

06 - Door Parts
07 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018346 | Liner-oven Door |
|
- | |||||
| 2 | 5303018345 | Insulation |
|
- | |||||
| 3 | 5308012609 | Shield-oven Door Heat |
|
- | |||||
| 4 | 3051038 | Nut |
|
- | |||||
| 5 | 5303051041 | Spacer Handle |
|
- | |||||
| 6 | 3051043 | Bolts |
|
- | |||||
| 7 | 5308013882 | Handle Oven Door |
|
- | |||||
| 9 | 5303014982 | Panel-oven Door, Almond |
|
- | |||||
| 10 | 5308008057 | Glass-outer |
|
- | |||||
| 11 | 08007938 | Clamp |
|
- | |||||
| 12 | 5308008058 | Glass-inner |
|
- |
